Autel Alpha

Autel Alpha Drone
  • In stock

excl VAT

Excl. VAT

Incl. VAT

Request a quote

Request a Quote

Autel Alpha Drone

HIGHLIGHTS

  • Weight (Battery and gimbal included): 6340g
  • Max takeoff weight: 8400g
  • Dimensions (folded, excl. propellers): 455*263*248mm
  • Max Flight Time (windless): 40mins
  • Max Horizontal Speed (windless near sea level): 25m/s
  • Max Wind Resistance: 12m/s
  • IP Rating: IP55
  • Operating Temperature: -4°F to 122°F (-20℃ – 50℃)
  • Autel Alpha Zoom Camera – Optical Zoom: 1.4~35 times, Hybrid Zoom: 35~560 times, ISO Range: Auto: ISO100~ISO25600, Photo: ISO100~ISO160000
  • Autel Alpha Thermal Camera (Wide) – Resolution: 640*512 P25, Temperature Measurement Range: -20℃ to +150℃, 0℃ to +550℃

More highlights on our socials.

Youtube Instagram

VIDEOS

Experience the product by watching the carefully selected video’s.
Introduction
Thermal Zoom & AI
First flight

SPECIFICATIONS

Below you can explore the specifications in the table. Would you like to download the specifications, press any of the buttons on top of the table in the desired file format.
Aircraft
Weight （Battery and gimbal included)6340g
Max. takeoff weight8400g
Dimensions1205*980*278mm (unfolded, incl. propellers)
780*568*278mm (unfolded, excl. propellers)
455*263*248mm (folded, excl. propellers)
Diagonal Wheelbase814mm
Max Flight Time (windless)40mins
Max Hovering Time (windless)38mins
Max Horizontal Speed (windless near sea level)25m/s
Max Wind Resistance12m/s
Hovering AccuracyVertically:
±0.1 m (when vision systems working normally);
±0.3 m (when GNSS working normally);
±0.1 m (when RTK fix)
Horizontally:
±0.15 m (when vision systems working normally);
±0.3 m (when GNSS working normally);
±0.1 m (when RTK fix)
IP RatingIP55
Operating Temperature-4°F to 122°F (-20℃ – 50℃)
GNSSGPS+GLONASS+BeiDou+Galileo
DG-L35T
Autel Alpha Wide Camera
Sensor1/2 CMOS, Effective pixels: 48M
LensEquivalent Focal Length: 24 mm
Aperture: f/2.8
Focusing Distance: 5m ~ ∞
ISO RangeISO100~ISO3200
Autel Alpha Zoom Camera
Sensor1/1.8″ CMOS
Zoom RangeOptical Zoom: 1.4~35 times
Hybrid Zoom: 35~560 times
ISO RangeAuto: ISO100~ISO25600
Photo: ISO100~ISO160000
PhotoFormat: 8bit JPG，12bit DNG
Resolution: 3840*2160
VideoFormat: MP4/MOV
Max Resolution: 3840*2160 P30
Autel Alpha Thermal Camera (Wide)
SensorUncooled VOx Microbolometer
LensFOV：42°
Focal length: 13mm
Aperture: f/1.2
Resolution640*512 P25
Temperature Measurement Range-20℃ to +150℃, 0℃ to +550℃
Temperature Measurement Accuracy3℃ or ±3% of reading (using the larger value)
@ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)
Autel Alpha Thermal Camera (Tele)
SensorUncooled VOx Microbolometer
LensFOV：12.3°
Focal length: 45mm
Aperture: f/1.2
Zoom RangeWide Digital Zoom: 1~3.5 times
Tele Digital Zoom: 3.5~56 times
Resolution640*512 P25
Temperature Measurement Range-20℃ to +150℃，0℃ to +550℃
Temperature Measurement Accuracy3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)
Autel Alpha Laser Rangefinder
Measuring Range10-2000m
Measurement Accuracy± (1m + D×0.3%)
*D is the distance to a vertical surface

IN ACTION

Creating moments worth remembering.

DOWNLOADS

Explore our informative downloads! Access brochures and other valuable resources designed to provide essential insights and enhance your experience.

Autel Alpha

Brochure
DOWNLOAD

Autel Alpha

Speaker and spotlight
DOWNLOAD

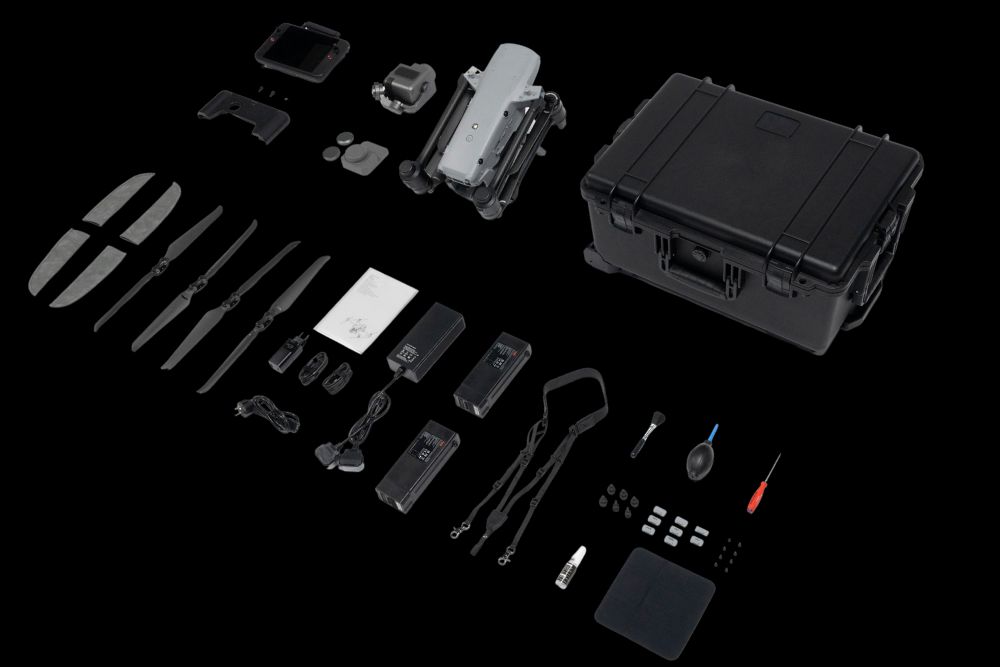

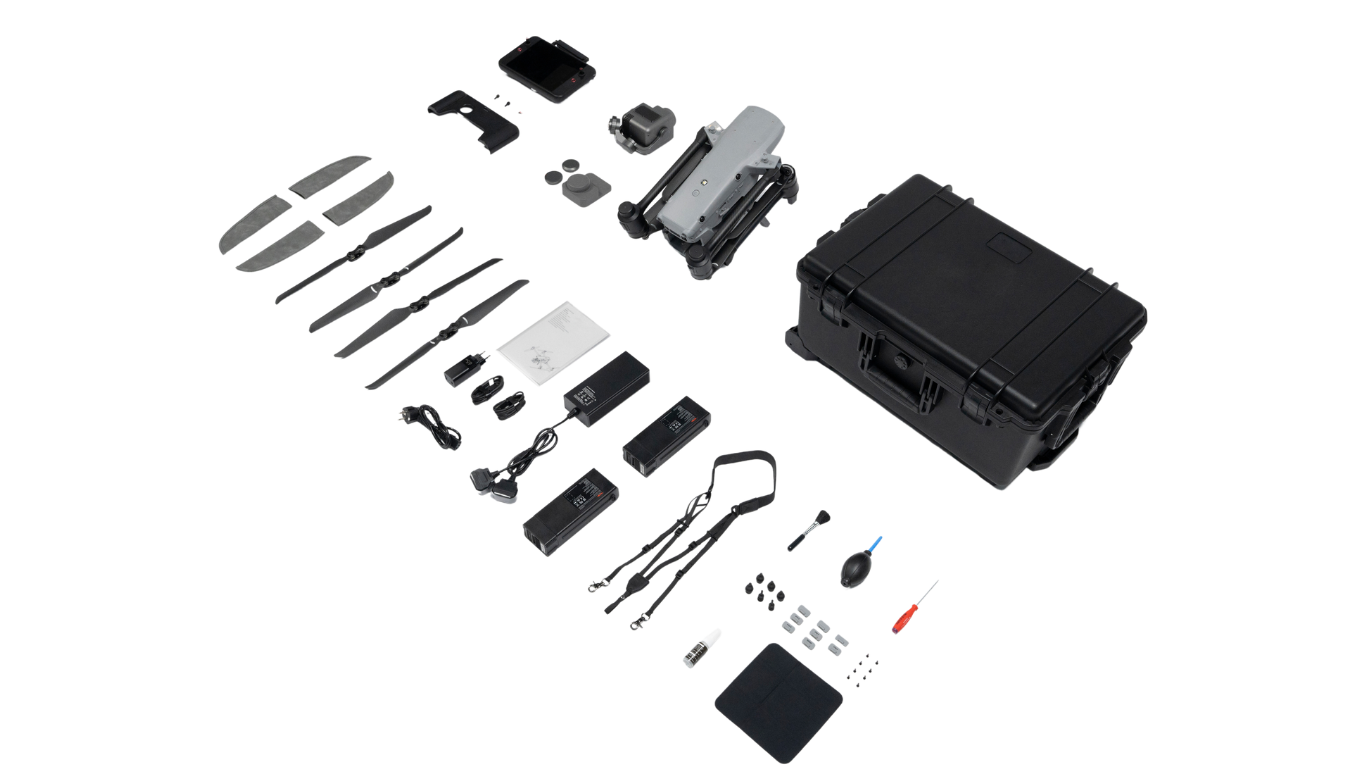

box contents

Here’s what’s included:
  • This can change at the moment of release!
  • Aircraft (Battery, propeller, gimbal, gimbal cover, 64G SD card included)
  • Battery Charger + Power Cable x1
  • Spare Propeller (pair) x1
  • Smart Controller V3 (sticks included) x1
  • Smart Controller Lanyard x1
  • Smart Controller Cover x1
  • Smart Controller Spare Joystick (pair) x1
  • RC Charger x1
  • RC Charging Cable x1
  • Data Cable x1
  • Manuals
    • Quick Guide
    • Packing list
  • Rugged Case x1
