DGD1

Home » Shop » Anti-drone devices » DGD1

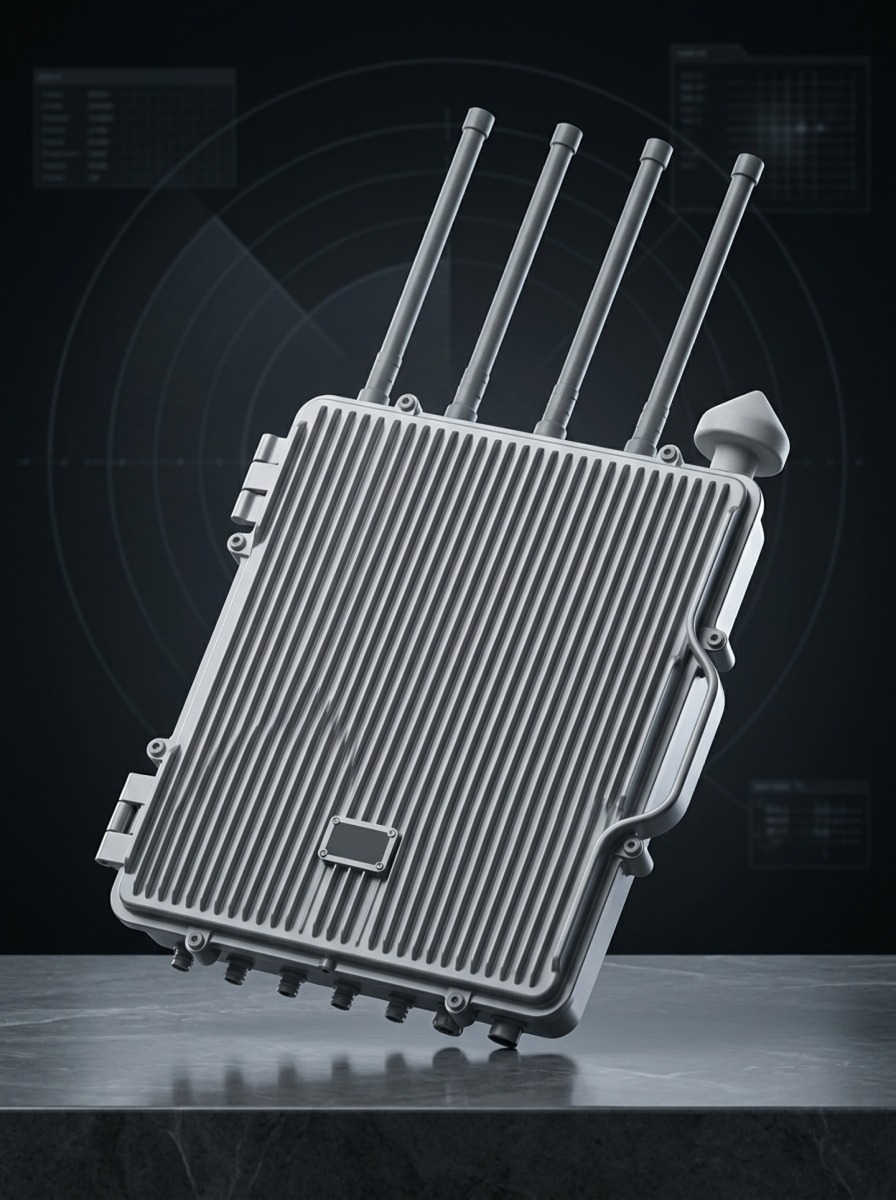

The DGD1 is a fixed, high-performance drone detection and localization system designed for continuous monitoring of low-altitude airspace. The system provides accurate, multidimensional tracking of drones, including position (latitude and longitude), altitude, speed, takeoff point, return point, and the complete flight trajectory — all without transmitting any RF signals itself.

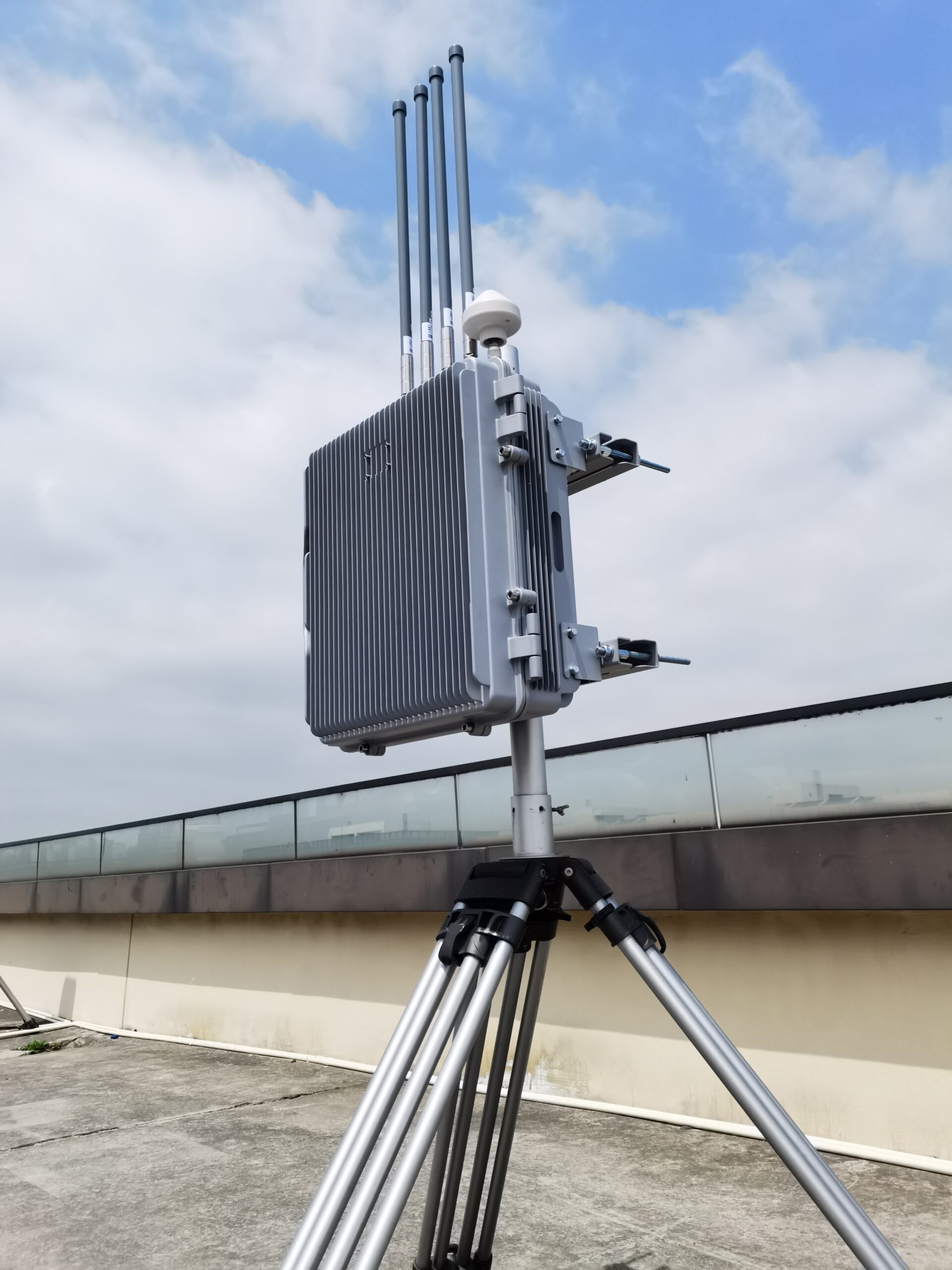

In addition, the DGD1 can also locate the remote controller, enabling security teams to identify not only the drone but also the operator. The system is built with a robust IP65-rated enclosure (513 × 462 × 187 mm, ≤25 kg), making it suitable for permanent outdoor installation at locations such as airports, military bases, power plants, and government facilities.

The DGD1 comes with a comprehensive software package, including GIS map visualization, whitelist and blacklist management, historical playback, heatmaps, and API integration for connection with third-party C-UAS systems. The system can operate independently or as part of a larger TDOA sensor network for coverage of extensive areas.

Ideal applications

Airports and aviation security
Military bases and restricted zones
Border surveillance
Government and political facilities
Power plants and petrochemical sites

Fixed Infrastructure Detection & Location

Highlights

✓ Multidimensional drone tracking (position, speed, altitude, trajectory)
✓ Remote control localization & whitelist management
✓ Full trajectory view, heatmaps, and API integration
✓ IP65 certified, -20°C to +65°C, lightweight design ≤25kg
✓ Power ≤100W with 100–220V AC input
✓ Interfaces: 2.4/5.8G, 900M, GPS en RJ45

Technical specifications

Frequency range: 900MHz – 5.8GHz
RF-interfaces: 2.4GHz, 5.8GHz, 900MHz
GPS antenna interface: N-type male (internal thread)
Network interface: RJ45 waterproof connection
Power interface: 20-3 pin waterproof connection
Power consumption: ≤100W
Input voltage: 100 – 220V AC
Dimensions: 513 × 462 × 187mm
Weight (housing): ≤25kg
Protection class: IP65
Operating temperature: -20°C to +65°C
Storage temperature: -40°C to +70°C
Recommended storage: 20°C to 30°C

Ready to secure your airspace?

Contact Aerogence’s defense specialists for a consultation, pricing, and deployment support.
