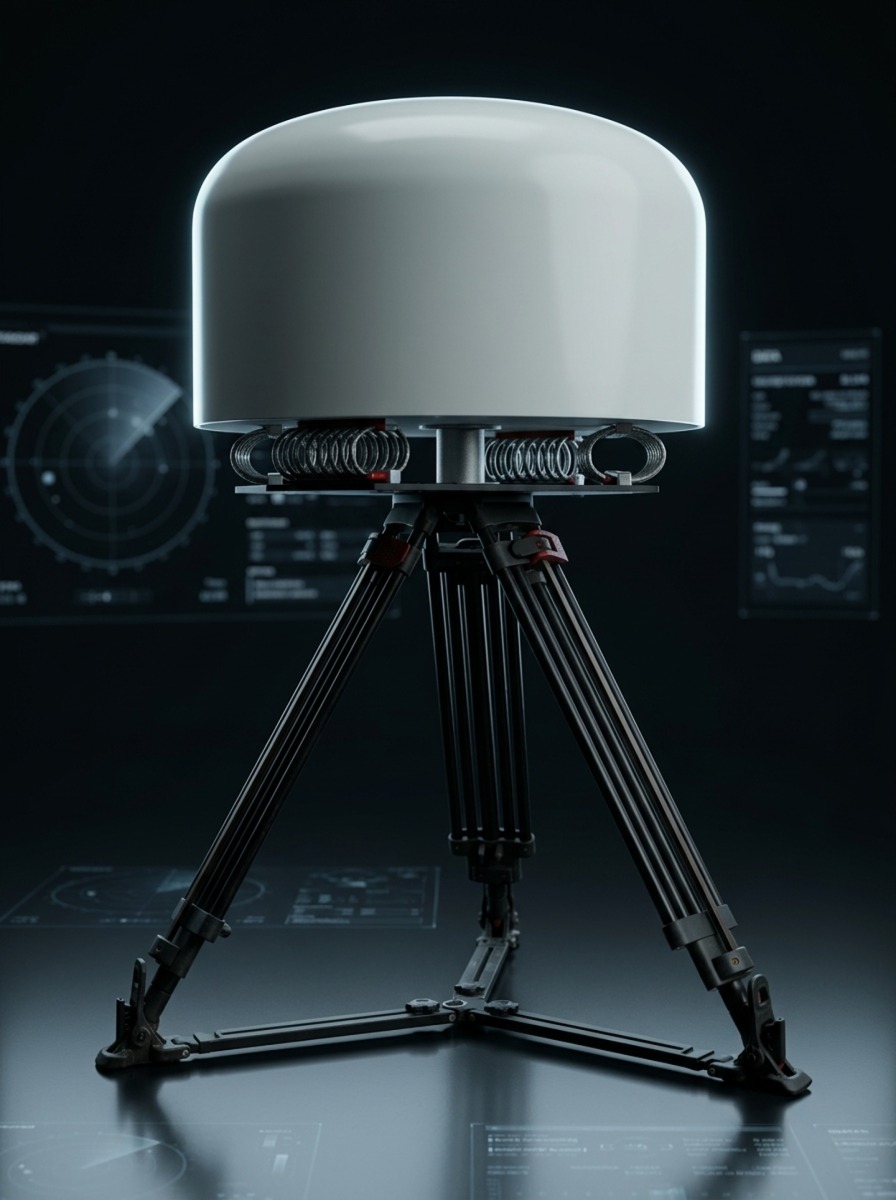

The DGM2 is a vehicle-mounted, all-in-one platform for drone detection and countermeasures that offers complete protection against unauthorized UAVs. It integrates passive RF detection (100MHz–6GHz) with powerful jamming on the 900MHz, 2.4GHz, 5.2GHz, and 5.8GHz bands, disrupting drone control links, video transmission, and GNSS navigation.

The system detects drones up to 5 km away and automatically activates directional or omnidirectional jamming within a range of 1–2 km, with an output power of up to 46 dBm per channel. It also tracks both the drone and the operator and displays real-time positions on an interactive map.

The DGM2 is reinforced for mobile operations (IP65, -20°C to +65°C) and can be mounted on patrol vehicles, convoys, or fixed checkpoints. The automated link between detection and action guarantees a rapid response with a response time of less than 3 seconds.

Ideal use cases

Public security and police patrol vehiclesMilitary operations and convoy protectionVIP and political figure securityLarge-scale events and crowd protectionBorder control and surveillance

Integrated Detection & Jamming System

Highlights

✓ All-in-one detection + jamming (42–46dBm output)
✓ Detection range 1–5km, jamming range 1–2km
✓ Tracks ≥10 drones, ≤10m accuracy, ≤1° azimuth
✓ Automated detection-to-strike linkage
✓ IP65, -20°C to +65°C, ≤30kg
✓ Power detection ~70W, jamming ~1500W

Technical specifications

Detection frequency: 100MHz – 6GHz
Detection range: 1 – 5km
Jamming range: 1 – 2km
Detection altitude: 0 – 1000m
Target capacity: ≥10 drones
Simultaneous tracks: ≥5
Positioning accuracy: ≤10m
Azimuth accuracy: ≤1°
Detection success rate: ≥97%
Response time: ≤3 seconds
Jamming bands: 900M, 2.4G, 5.2G, 5.8G
Jamming output per channel: 42 – 46dBm
Power consumption (detection only): ~70W
Power consumption (full jamming): ~1500W
Input voltage: 100 – 240V AC
Weight: ≤30kg
Dimensions: Ø600 × 420mm
Protection rating: IP65
Operating temperature: -20°C to +65°C
