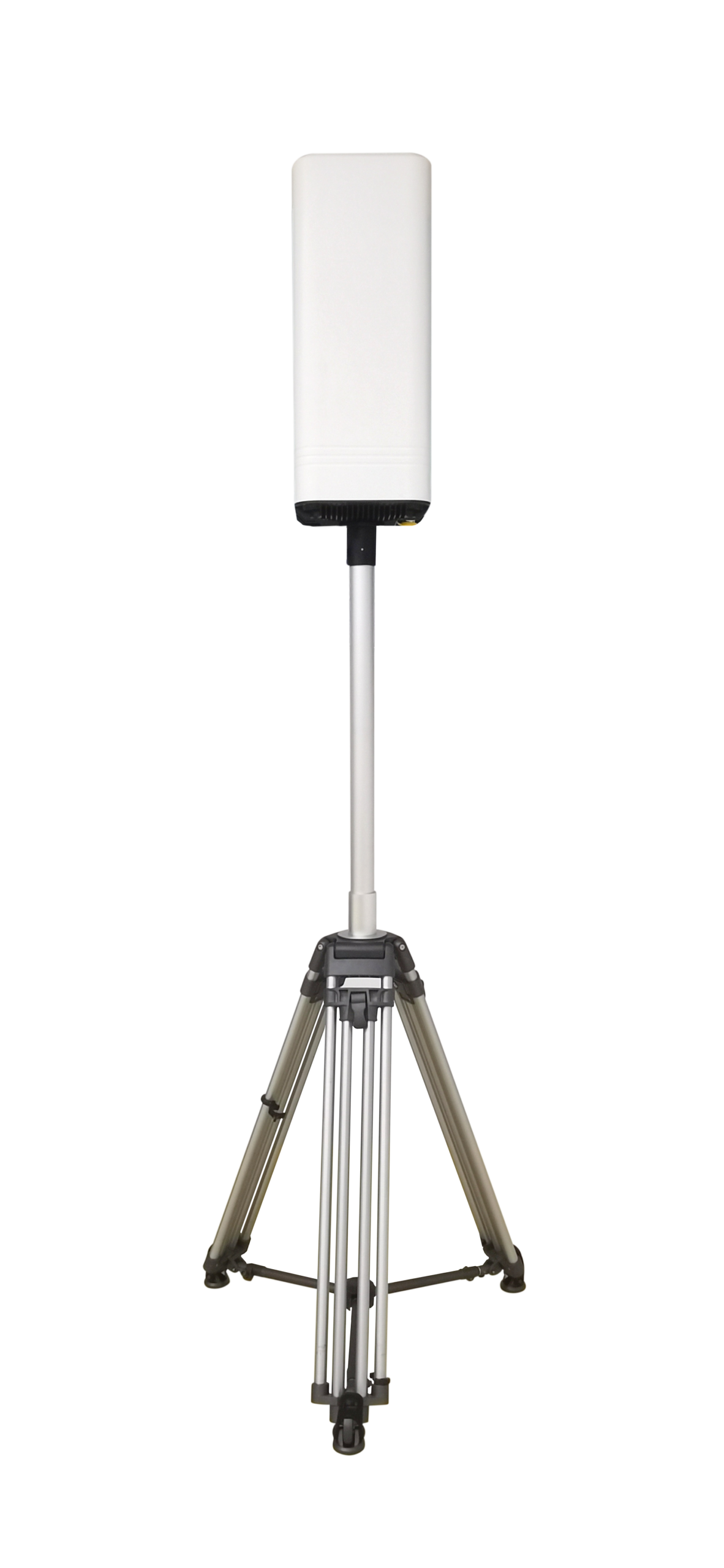

DGS2

Home » Shop » Anti-drone devices » DGS2

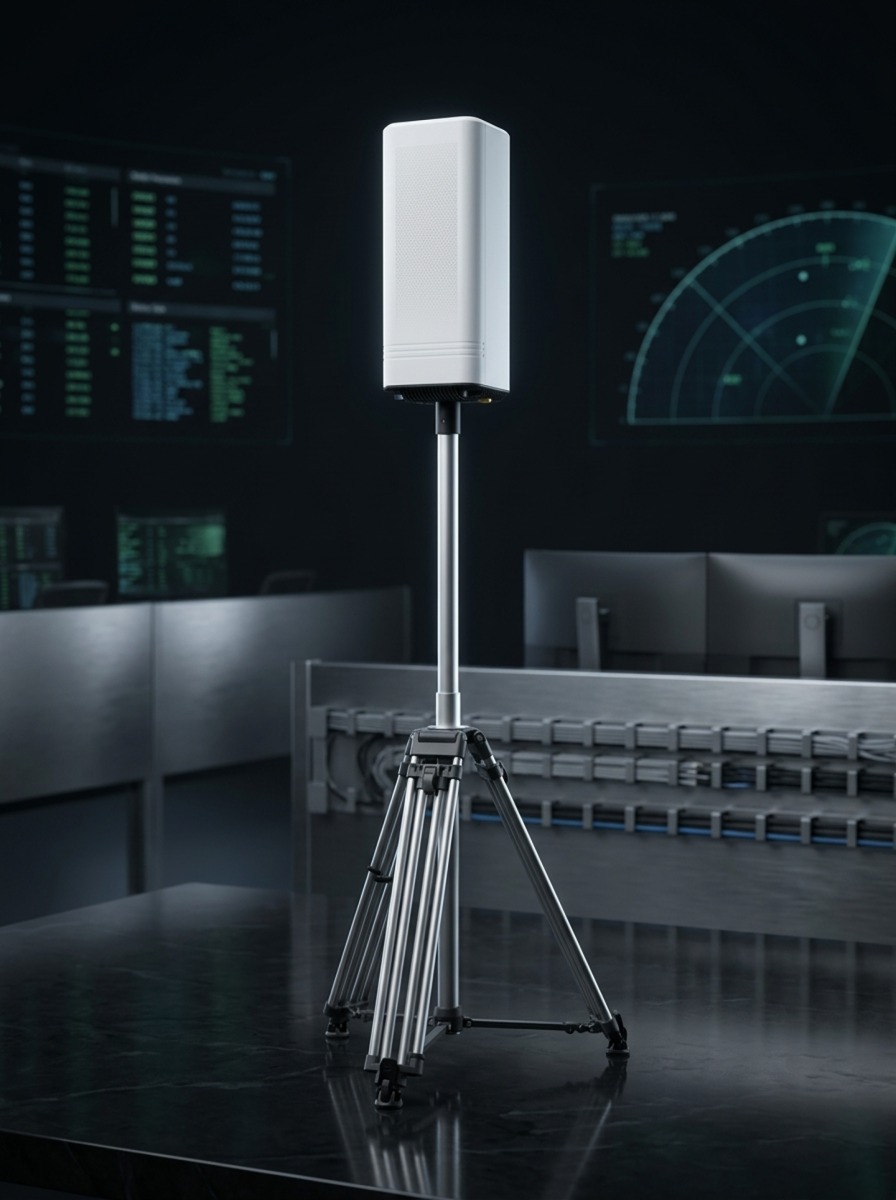

The DGS2 is a fixed, professional drone detection and positioning system designed for highly accurate airspace surveillance in complex urban and critical security environments. By utilizing passive RF detection, it identifies and tracks drones in real-time without transmitting signals itself.

The system supports TDOA networks for accurate positioning of multiple drones and offers an extensive database of over 800 drone models, including DJI, Autel, Fimi, and custom-made DIY drones. The DGS2 provides full trajectory visualization, pilot geolocation, and advanced analytics such as heatmaps, statistical trends, and event logs.

With a detection range of up to 6 km, a positioning accuracy of ≤5 m for a single station, and a response time of less than 3 seconds, the DGS2 forms the backbone of professional airspace security programs. Furthermore, it integrates seamlessly with jamming and deception systems for coordinated countermeasures.

Ideal applications

Urban airspace surveillance
Airports and aviation security
Military and defense zones
Border surveillance systems
Protection of critical infrastructure

Fixed High‑Accuracy Drone Detection

Highlights

✓ Range up to 6km, ≤5m accuracy (single station)
✓ Detects ≥10 drones simultaneously, TDOA network ready
✓ Database with 800+ drone models, blacklist/whitelist
✓ Heatmaps, trajectory visualization, API integration
✓ IP65, -20°C to +55°C, ≤12kg
✓ Power ≤100W, response time ≤3s

Technical specifications

Frequency range: 100MHz – 6GHz
Detection range: 2 – 6km
Single‑station positioning range: 1 – 3km
Detection altitude: up to 1000m
Positioning accuracy (single station): ≤5m
Positioning accuracy (TDOA network): ≤10m
Simultaneous targets: ≥10 drones
Simultaneous tracks (single unit): ≥5
Simultaneous tracks (TDOA network): ≥10
Detection success rate: ≥97%
Response time: ≤3 seconds
Power consumption: ≤100W
Input voltage: 220V AC / 12V DC
Weight: ≤12kg
Dimensions: 260 × 260 × 637mm
Protection rating: IP65
Operating temperature: -20°C to +55°C

Ready to secure your airspace?

Contact Aerogence’s defense specialists for a consultation, pricing, and deployment support.
