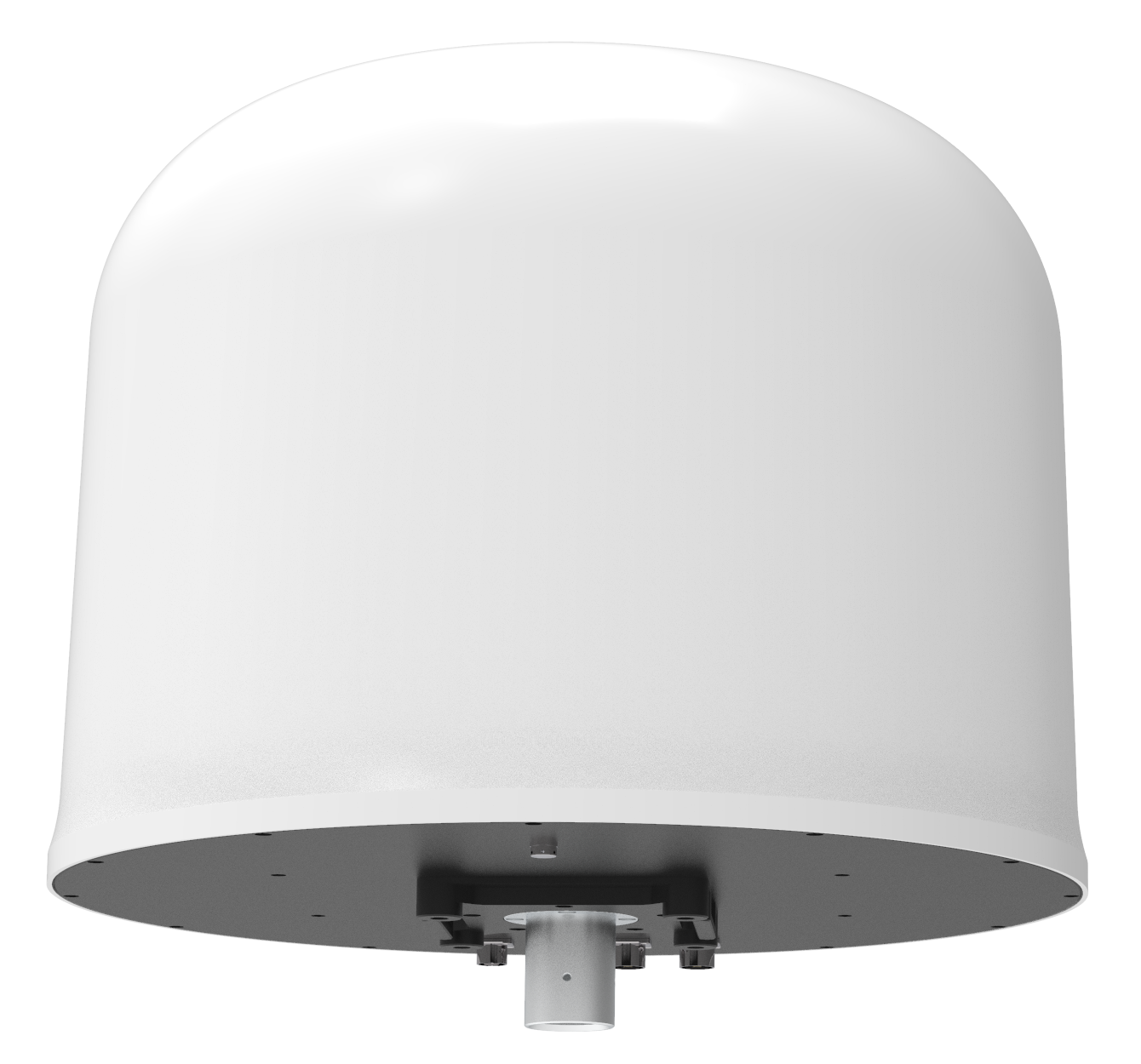

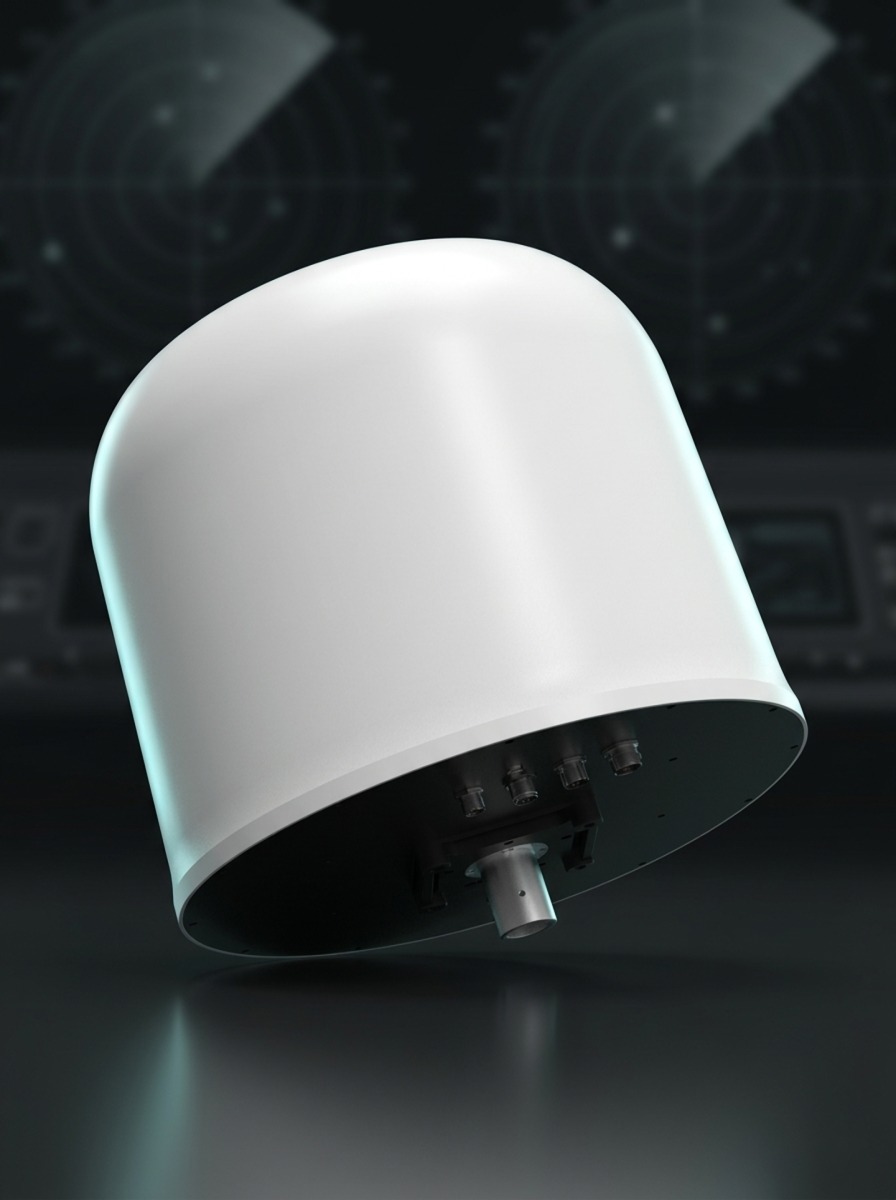

The DGS2D is a high-performance drone detection system that combines Time Difference of Arrival (TDOA) and Angle of Arrival (AOA) technologies for unparalleled situational awareness. It offers 360° passive detection with real-time azimuth accuracy of approximately 10°, allowing operators to instantly determine the direction of a threat.

The system features a built-in spectrum analyzer that scans from 100MHz to 6GHz and displays spectrograms and waterfall views to identify unusual RF activity. With a detection range of up to 5 km and the ability to track more than 20 drones simultaneously, the DGS2D is ideal for large-area surveillance, border security, and the protection of critical infrastructure.

The robust IP65 housing withstands extreme temperatures (-40°C to +65°C) and severe weather conditions. Furthermore, TDOA networks between multiple devices enable highly accurate geolocation across large, interconnected sensor networks.

Ideal applications

Urban airspace surveillance and smart cities
Airports and aviation security
Military and defense surveillance
Border and perimeter surveillance
Major infrastructure sites (energy, petrochemicals)

DGS2D

TDOA + AOA Direction Finding

Highlights

  • 360° passive detection with AOA direction determination
  • Range up to 5km, detects ≥20 drones simultaneously
  • Spectrum scanning 100MHz–6GHz with waterfall view
  • Positioning accuracy ≤20m, IP65 certified
  • Gewicht ≤15kg, compact Ø420×530mm
  • Power ≤50W, refresh rate 10–30 scans/min

Technical specifications

  • Frequency range: 100MHz – 6GHz
  • Detection range: 2 – 5km
  • AOA direction finding range: ≥3km
  • Angular accuracy: ~10°
  • Max detection targets: ≥20 drones
  • Simultaneous tracks: ≥5 trajectories
  • Positioning accuracy: ≤20m
  • Detection mode: 360° passive
  • Spectrum scanning: 100MHz – 6GHz
  • Refresh rate: 10–30 times per minute
  • Power consumption: ≤50W
  • Input voltage: 220V AC / 12V DC
  • Weight: ~15kg
  • Dimensions: Ø420 × 530mm
  • Protection rating: IP65
  • Operating temperature: -40°C to +65°C

Ready to secure your airspace?

Contact Aerogence’s defense specialists for a consultation, pricing, and deployment support.
