DR200-C Fixed Drone Detection and Jamming Device

  • In stock
Request a Quote
  • Full frequency band detection: 70MHz-6GHz coverage for all drone models
  • Super interference with FPV drones: outstanding interference effect
  • Multiple interference modes: directional and omnidirectional interference
  • Strong scalability: expandable with radar, optoelectronics, navigation systems
  • Unattended operation: all-weather automatic execution
  • Military quality: aviation aluminum construction, extreme temperature resistance
  • Signal collection: built-in drone signal collection and learning function
About the product:

  • Full frequency band detection: 70MHz-6GHz coverage for all drone models
  • Super interference with FPV drones: outstanding interference effect
  • Multiple interference modes: directional and omnidirectional interference
  • Strong scalability: expandable with radar, optoelectronics, navigation systems
  • Unattended operation: all-weather automatic execution
  • Military quality: aviation aluminum construction, extreme temperature resistance
  • Signal collection: built-in drone signal collection and learning function

Pay with

Shipped by

Request a Quote

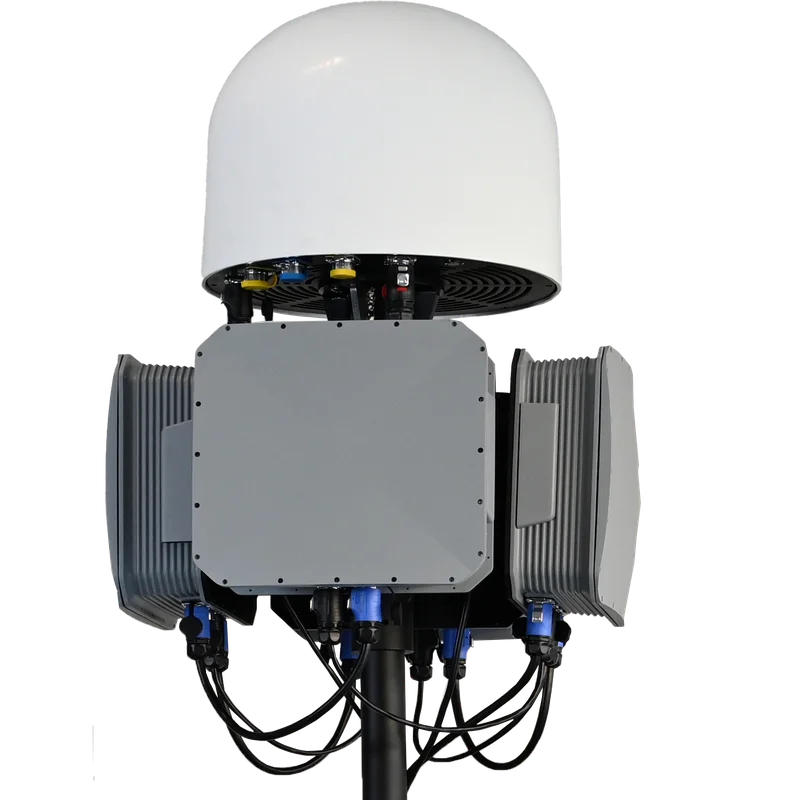

DR200-C Fixed Drone Detection and Jamming Device

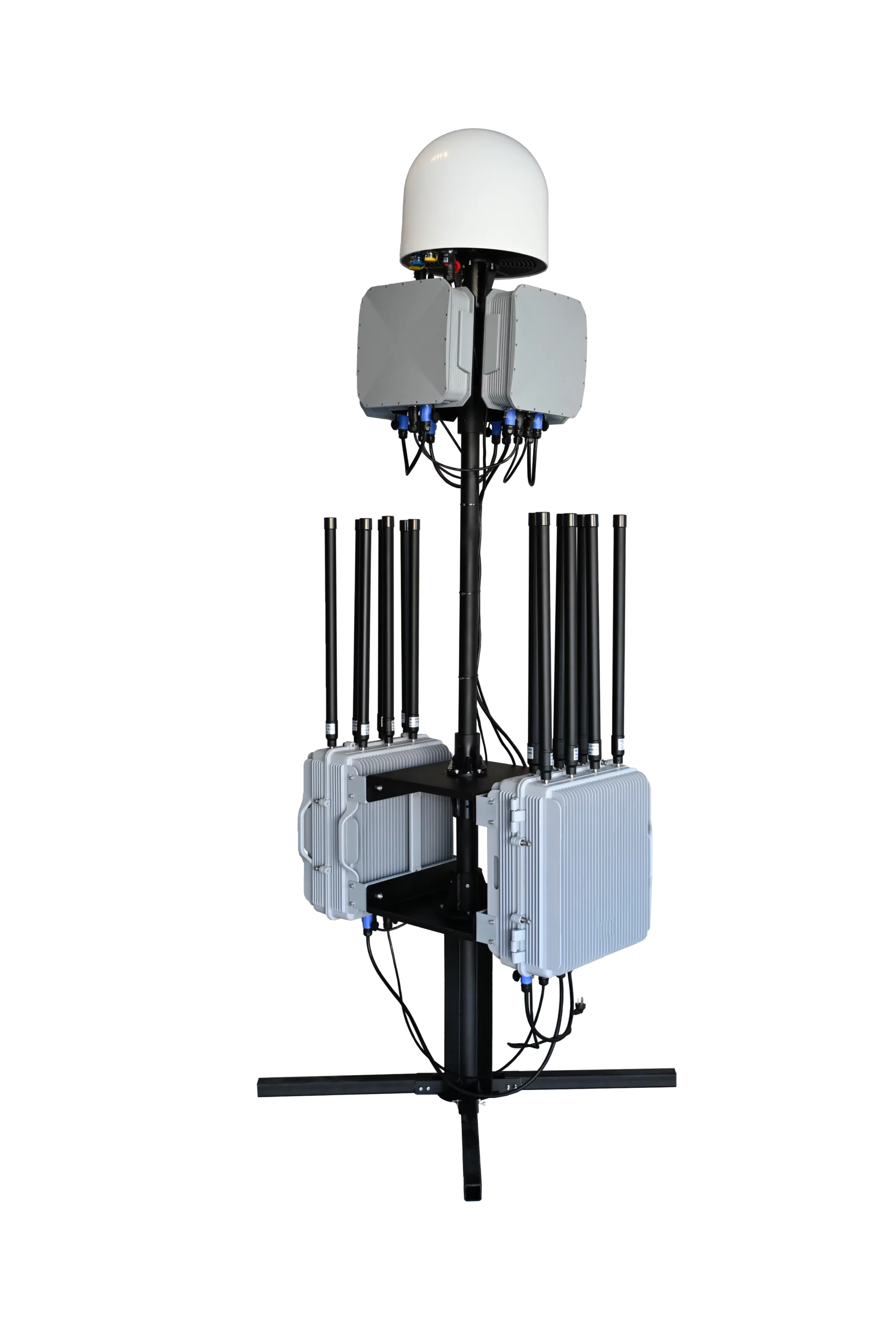

DR200-C Fixed Drone Detection and Jamming Device - Image 2

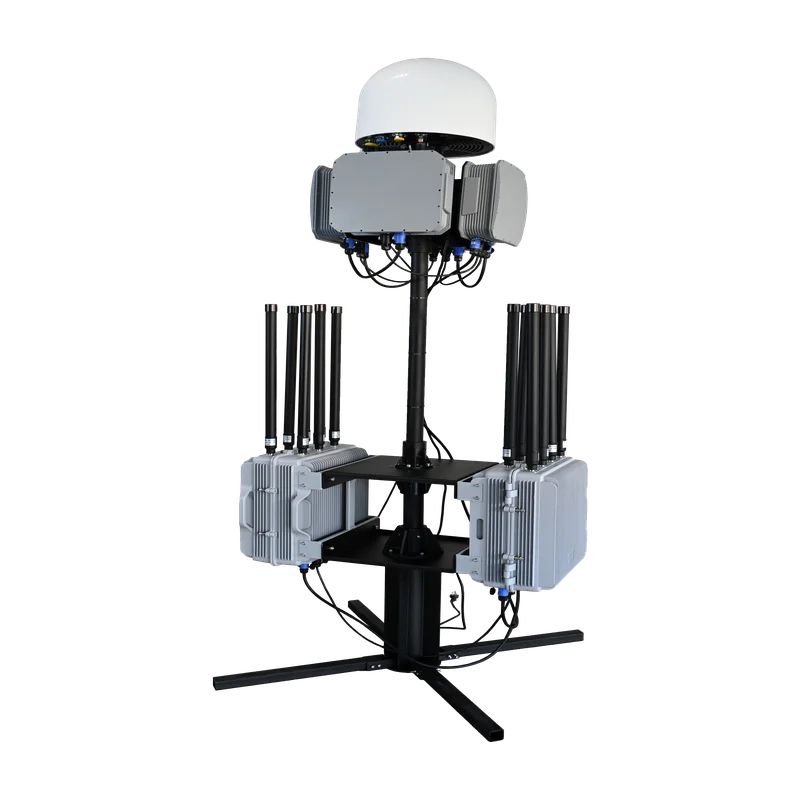

DR200-C Fixed Drone Detection and Jamming Device - Image 3
  • 6+ years experience in drone industry
  • Ships within 24 hours from EU warehouse
  • 2-Year limited warranty
  • No import duties
  • Best price guarantee
  • Free shipping above €100
  • High customer satisfaction
  • 6+ years experience in drone industry
  • Ships within 24 hours from EU warehouse
  • 2-Year limited warranty
  • No import duties
  • Best price guarantee
  • Free shipping above €100
  • High customer satisfaction
The DR200-C is a comprehensive fixed drone detection and jamming system designed for permanent installation and unattended operation. This advanced system combines a drone detection system with a radio interference system, capable of detecting, identifying, and interfering with drones. It can force drones to hover, make emergency landings, or return to their takeoff point, effectively protecting low-altitude airspace. The device features excellent detection and defense performance with long-distance working capabilities and requires no personnel supervision, making it ideal for continuous perimeter security and critical infrastructure protection.
  • Detection frequency bands: 70MHz-6GHz full frequency band scanning
  • Detection distance: ≥10km (depends on working conditions)
  • Jamming distance: ≥3km (depends on working conditions)
  • Detection range: Horizontal 360°, Vertical -90° to +90°
  • Detection response time: ≤10s
  • Direction finding accuracy: ≤±3° (RMS)
  • FPV video detection: 500MHz-6GHz scan and display
  • Working temperature: -40℃ to +60℃
  • Device total weight: ≤150kg
  • Device total size: Diameter 1000mm × height 2400mm
  • Omnidirectional jamming: 13 frequency bands with 20W-100W power
  • Directional jamming: 4 frequency bands with 30W-50W power
  • 1x Detection host (Diameter 400mm × height 370mm, 13.5kg)
  • 2x Jamming host (520mm × 465mm × 275mm, 30.25kg each)
  • 4x Directional jamming host (320mm × 320mm × 110mm, 4.85kg each)
  • 13x Jamming antenna (Diameter 32mm × height 600mm, 0.2kg each)
  • 1x Support rod assembly (Diameter 50mm × height 500mm, 46kg)
  • 12x Cable (0.15kg each)
  • 1x Detection host aviation case (680mm × 600mm × 480mm, 15.05kg)
  • 2x Omnidirectional jamming host aviation case (470mm × 570mm × 710mm, 27.5kg each)
  • 1x Support rod assembly aviation case (1700mm × 440mm × 350mm, 12.5kg)
  • 1x Directional jamming host aviation case (620mm × 430mm × 430mm, 7.9kg)
