DR500-AB Portable Drone Detection and Jamming Shield

  • In stock
Request a Quote
  • Full Band Coverage: 400MHz-6GHz comprehensive detection
  • Precise and Efficient Jamming: 2km effective range
  • Easy to Operate: humanized design with smart touch screen
  • Integrated Design: high integration with strong mobility
  • Super Practical: suitable for rapid and mobile deployment
  • Customized Services: intelligent solutions for better defense effects
About the product:

  • Full Band Coverage: 400MHz-6GHz comprehensive detection
  • Precise and Efficient Jamming: 2km effective range
  • Easy to Operate: humanized design with smart touch screen
  • Integrated Design: high integration with strong mobility
  • Super Practical: suitable for rapid and mobile deployment
  • Customized Services: intelligent solutions for better defense effects

Pay with

Shipped by

Request a Quote

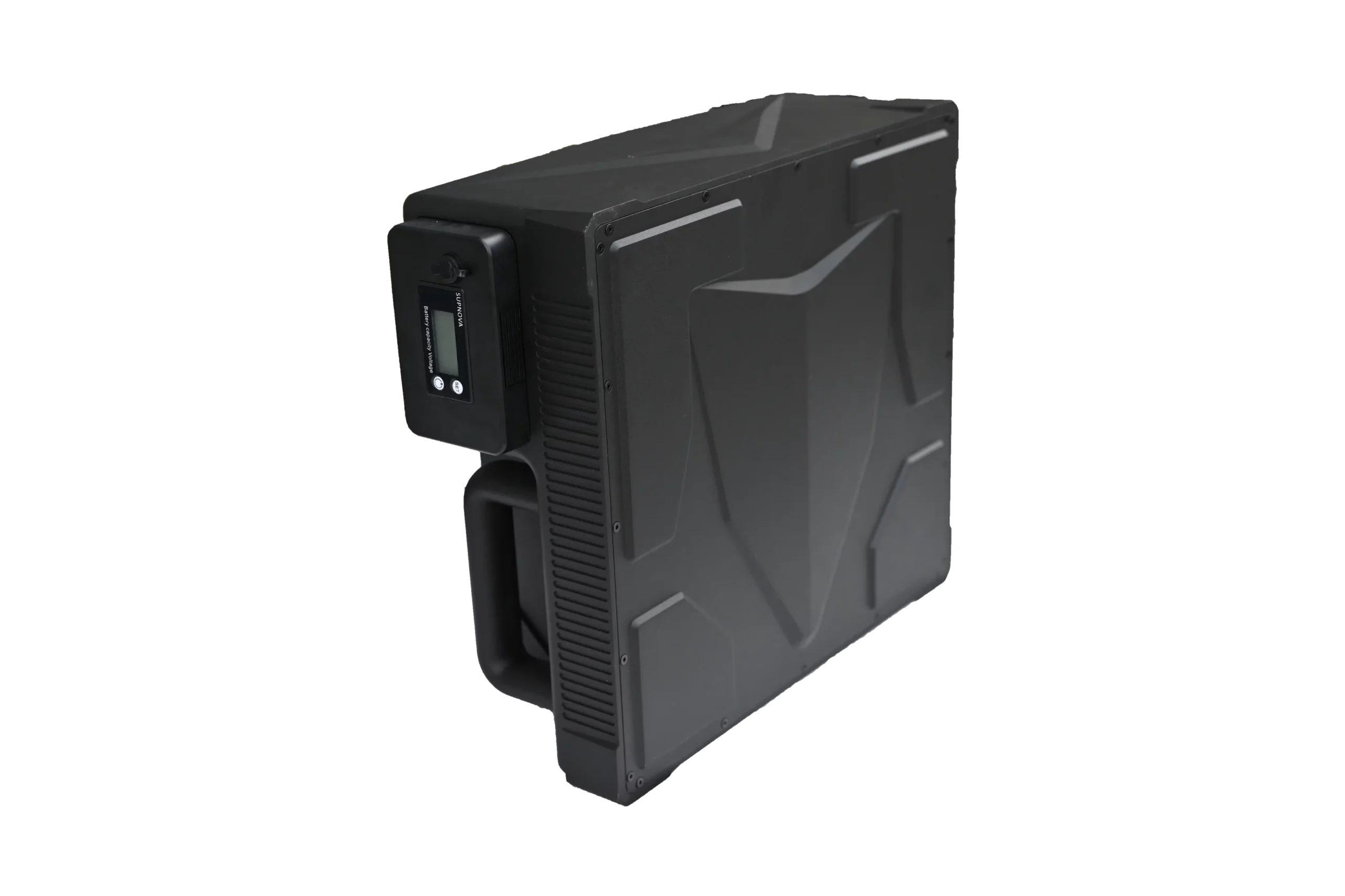

DR500-AB Portable Drone Detection and Jamming Shield

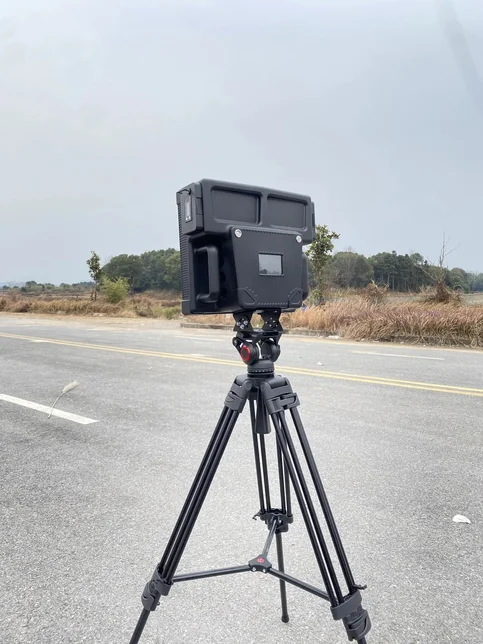

DR500-AB Portable Drone Detection and Jamming Shield - Image 2

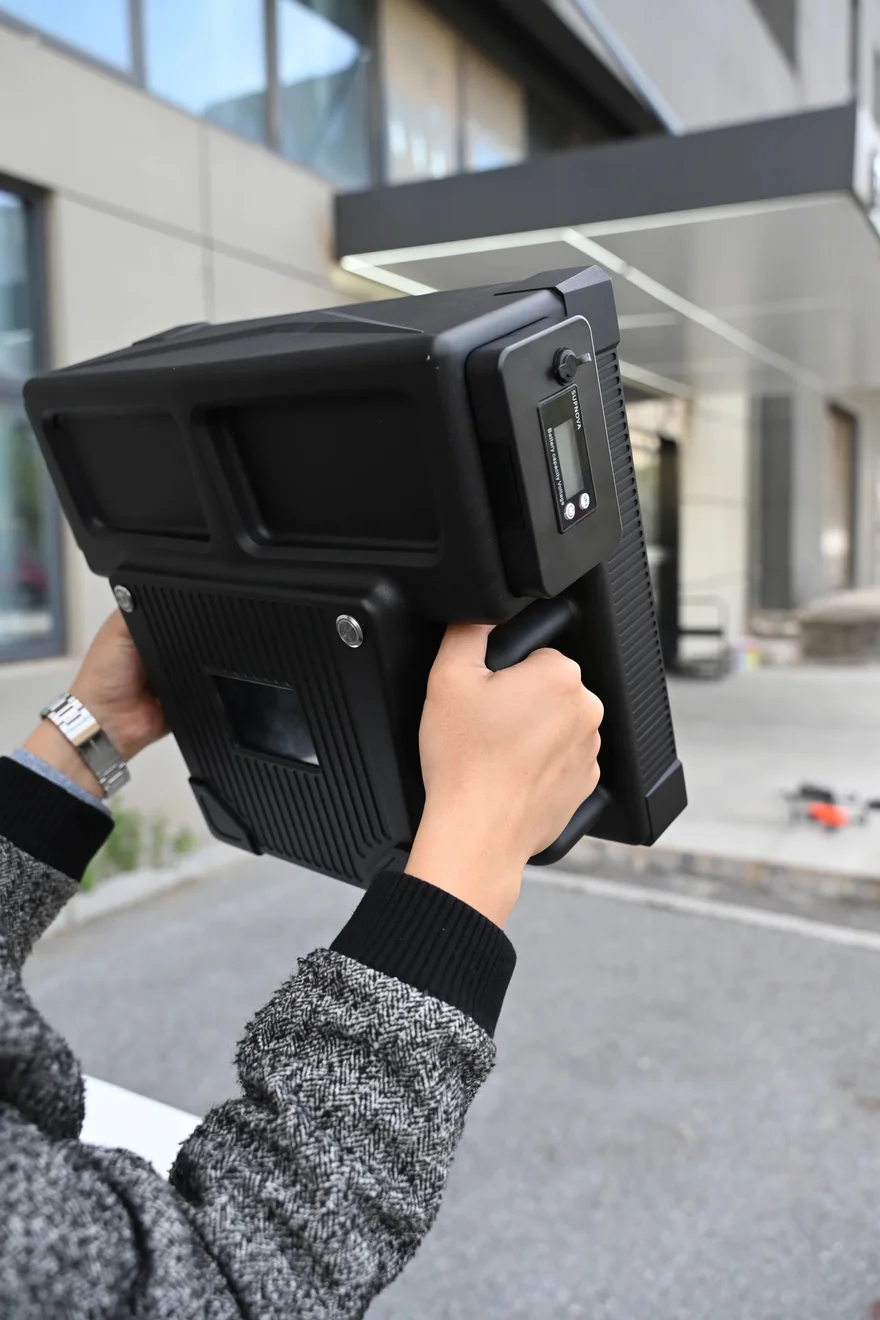

DR500-AB Portable Drone Detection and Jamming Shield - Image 3

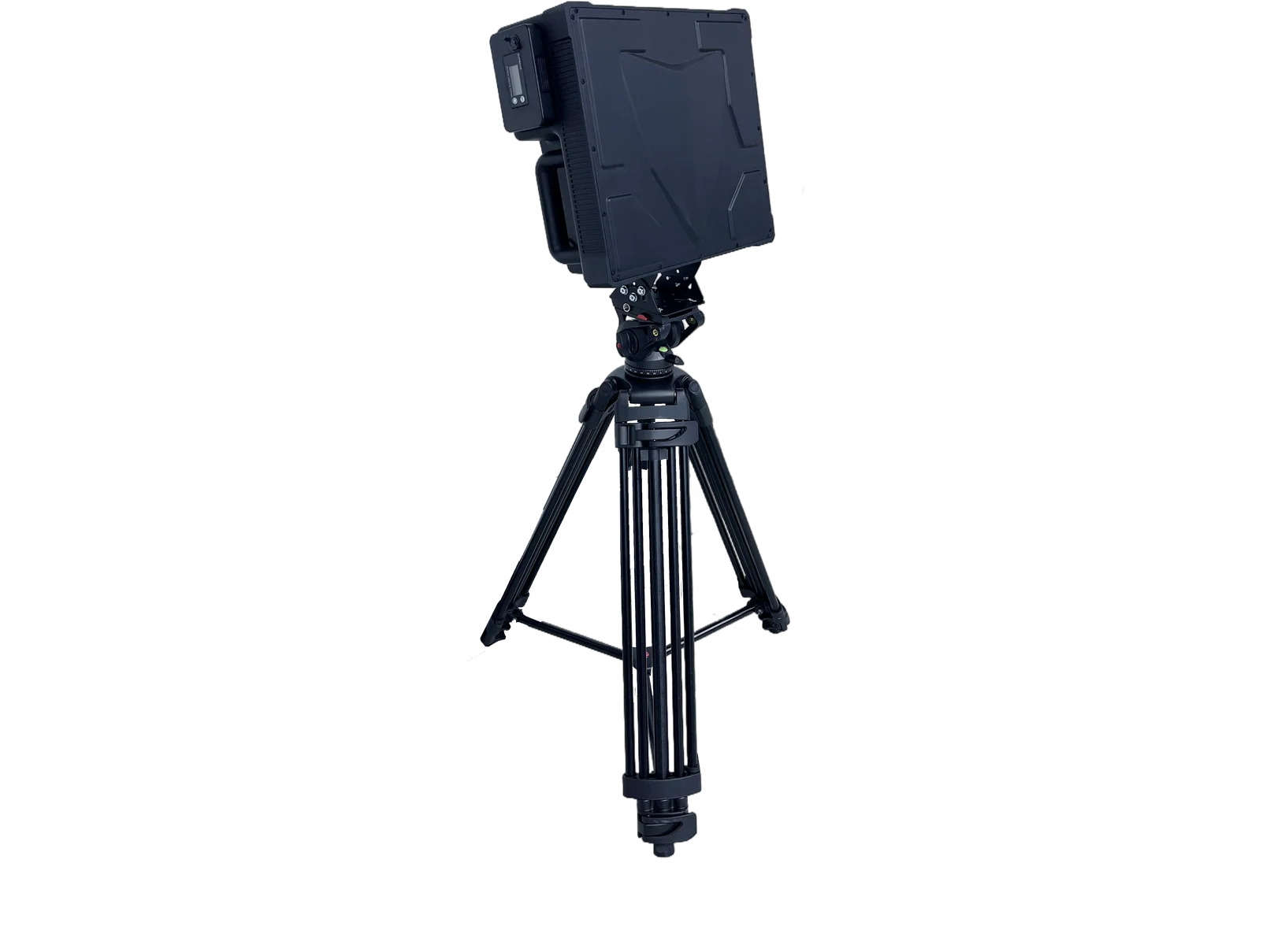

DR500-AB Portable Drone Detection and Jamming Shield - Image 4

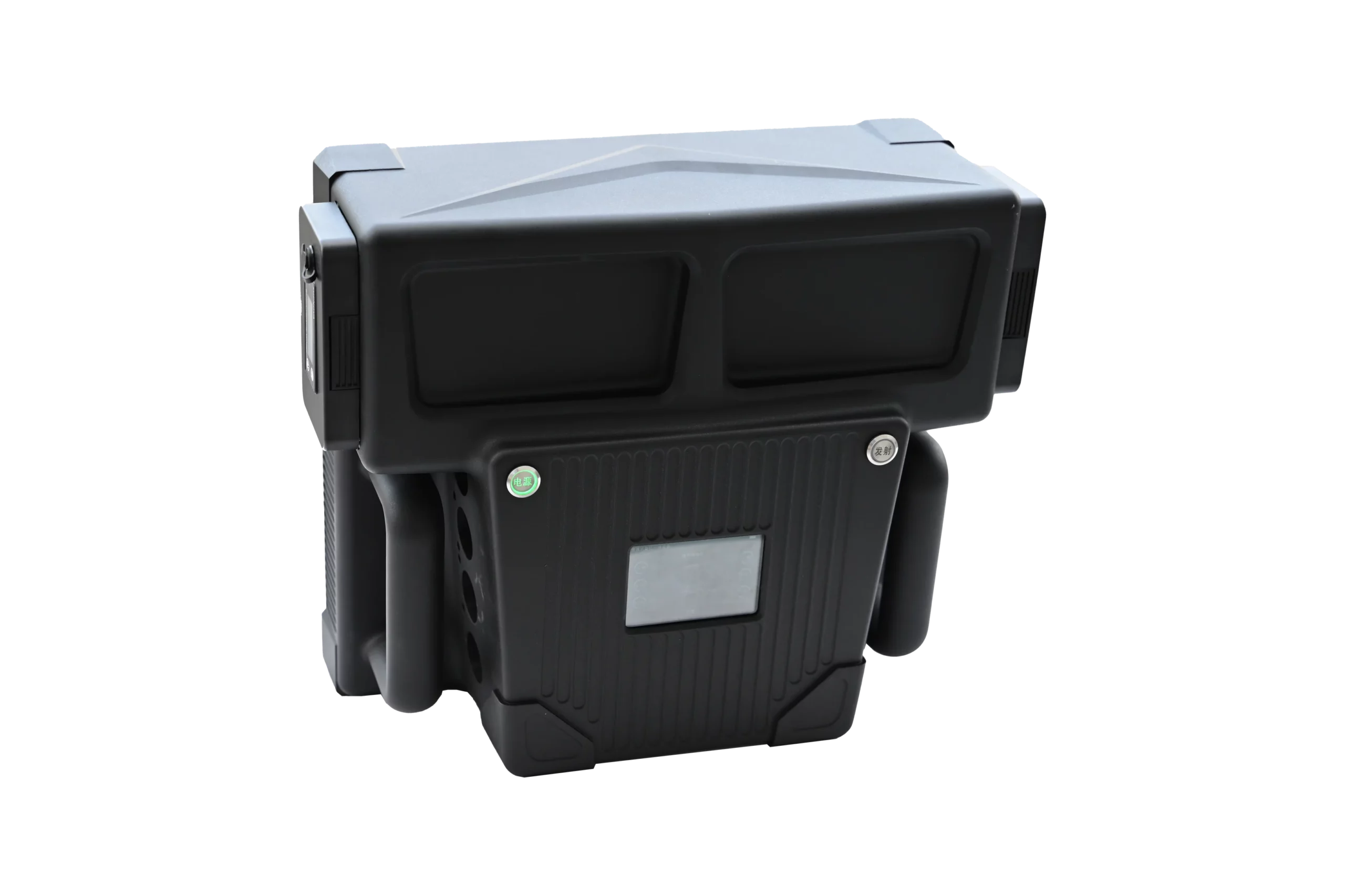

DR500-AB Portable Drone Detection and Jamming Shield - Image 5

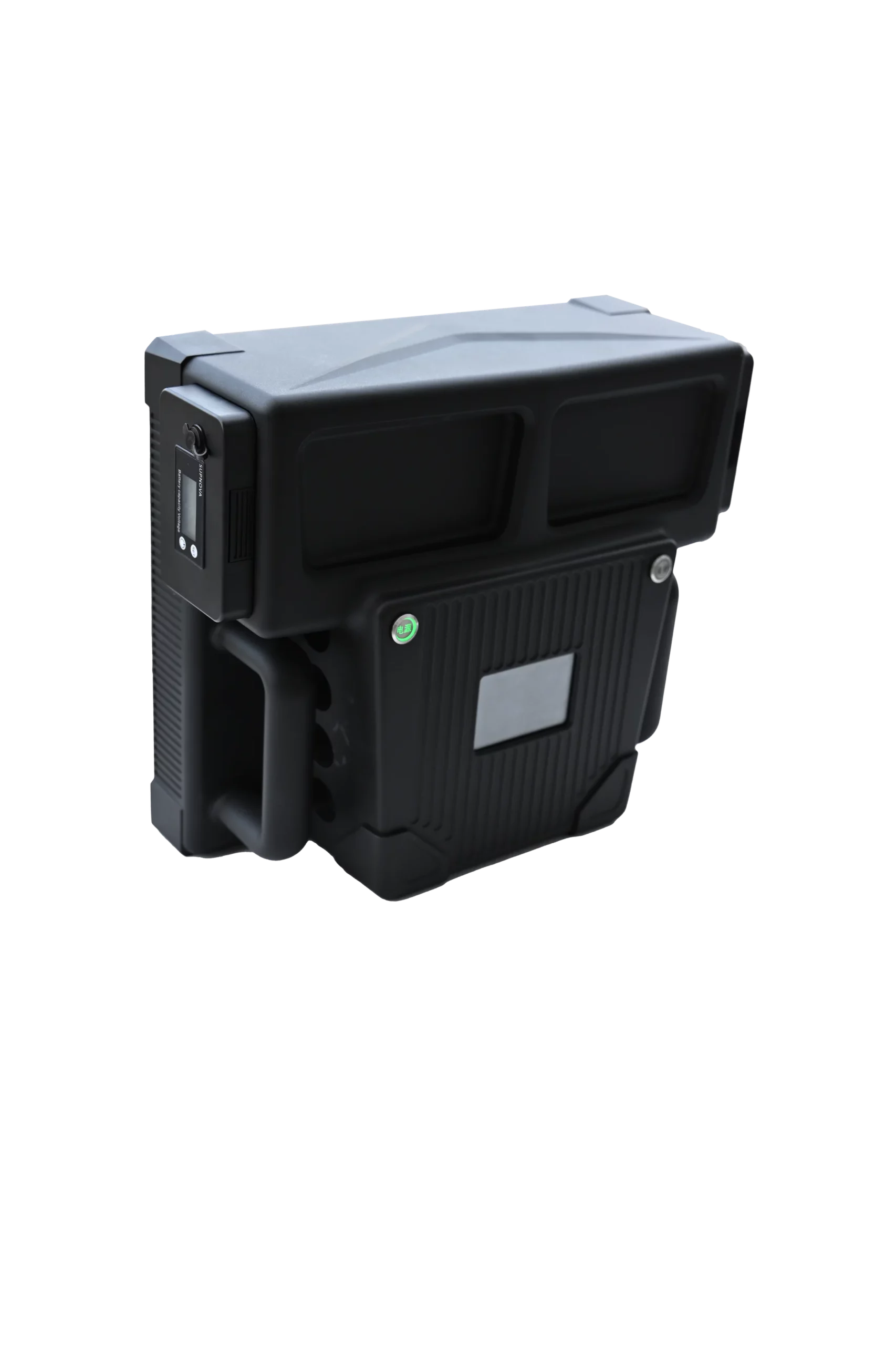

DR500-AB Portable Drone Detection and Jamming Shield - Image 6
DR500-AB Portable Drone Detection and Jamming Shield - Image 7
  • 6+ years experience in drone industry
  • Ships within 24 hours from EU warehouse
  • 2-Year limited warranty
  • No import duties
  • Best price guarantee
  • Free shipping above €100
  • High customer satisfaction
  • 6+ years experience in drone industry
  • Ships within 24 hours from EU warehouse
  • 2-Year limited warranty
  • No import duties
  • Best price guarantee
  • Free shipping above €100
  • High customer satisfaction
The DR500-AB is a comprehensive portable drone detection and jamming shield system that provides both detection and active countermeasure capabilities in a highly mobile platform. This advanced system consists of a drone detection system and a radio jamming system with excellent detection and defense performance and long-distance working capabilities. By suppressing drone remote control, data transmission, image transmission, and navigation signals, it forces drones to hover, land, or return, effectively protecting low-altitude airspace. The device features smart touch screen interface and rapid mobile deployment capabilities, making it suitable for various security scenarios requiring immediate response and flexible positioning.
  • Detection frequency Band: 400MHz-1500MHz, 2200-2500MHz, 5150-5950MHz
  • Detection range: ≥2km (depends on working conditions and drone models)
  • Direction finding accuracy: ≤10°
  • Azimuth range: Horizontal 0°-360°
  • Jamming distance: ≥2km (depends on working conditions and drone models)
  • Jamming frequency bands: 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz

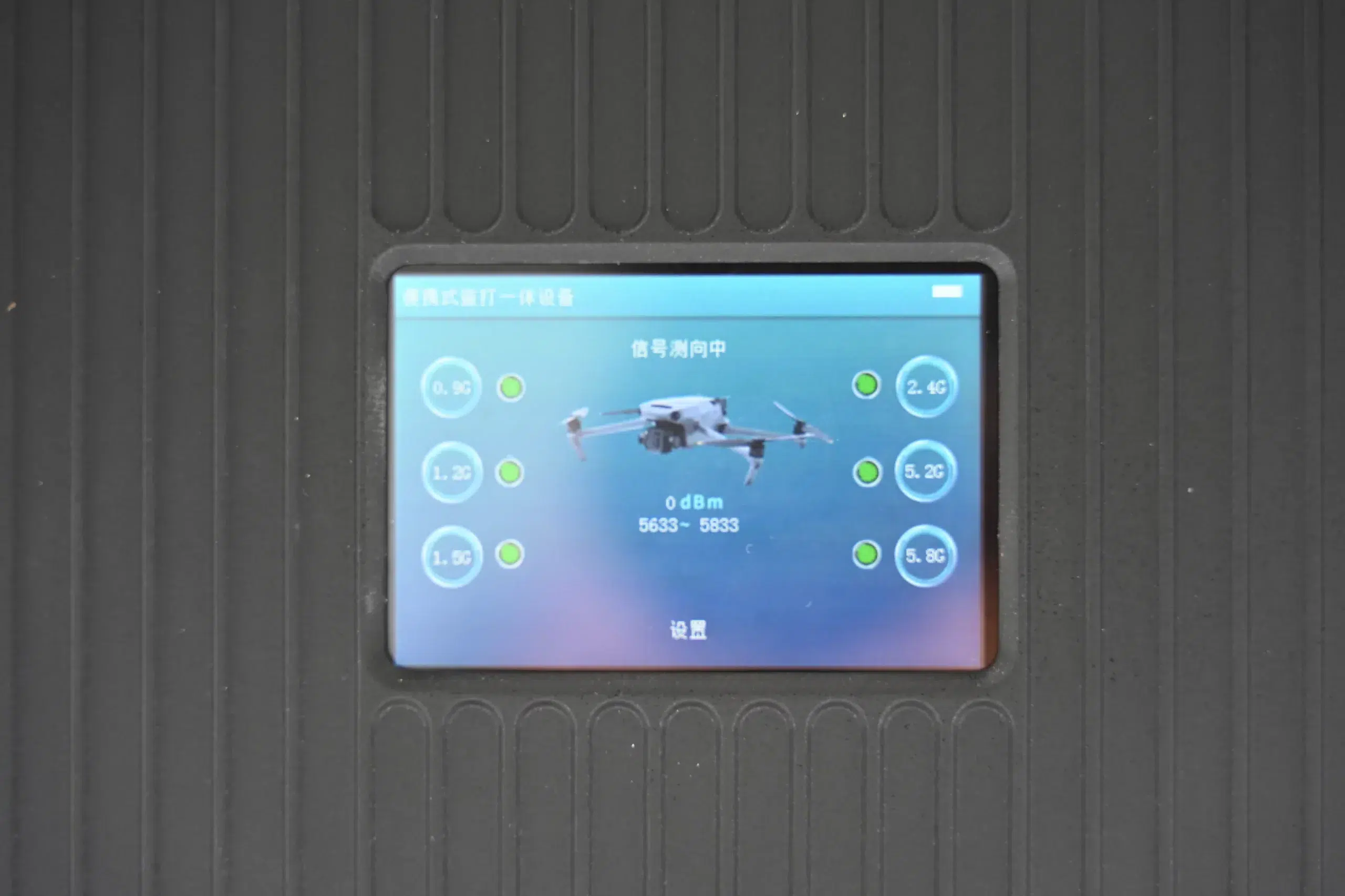

  • Operation screen: ≥3.5-inch touch screen
  • Battery life: ≥20h (standby mode with detection and alarm)
  • Operation temperature: -40℃ to +60℃
  • Weight: ≤8kg (including battery)
  • Size: 390mm × 160mm × 330mm (length × width × height)
  • 1x Host unit (390mm × 160mm × 330mm, 6.3kg)
  • 2x Battery (180mm × 120mm × 80mm, 1.05kg each)
  • 1x Charger (0.25kg)
  • 1x Aviation case (520mm × 400mm × 250mm, 4.45kg)
