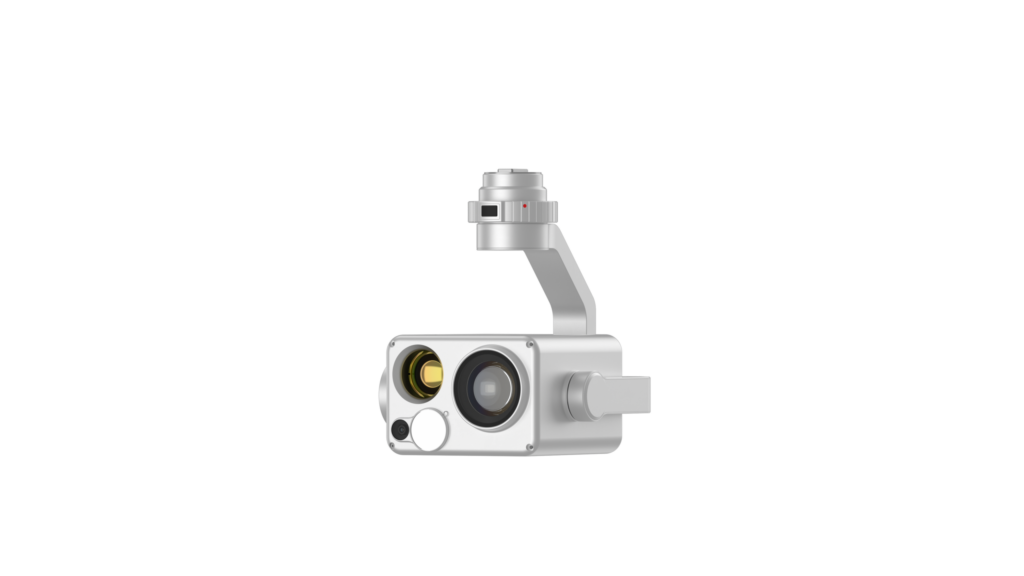

Dragonfish Pro with L20T

Highest-performance VTOL drone in the Dragonfish series with maximum stability and flight time.
T5 multi-sensor payload with zoom, wide-angle, thermal and laser rangefinder
Suitable for long-distance missions and large-scale inspections
Robust design with high wind resistance and industrial reliability
Fully autonomous mission planning and execution possible

About the product:

Highest-performance VTOL drone in the Dragonfish series with maximum stability and flight time.
T5 multi-sensor payload with zoom, wide-angle, thermal and laser rangefinder
Suitable for long-distance missions and large-scale inspections
Robust design with high wind resistance and industrial reliability
Fully autonomous mission planning and execution possible

Pay with

Shipped by

Request a Quote

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

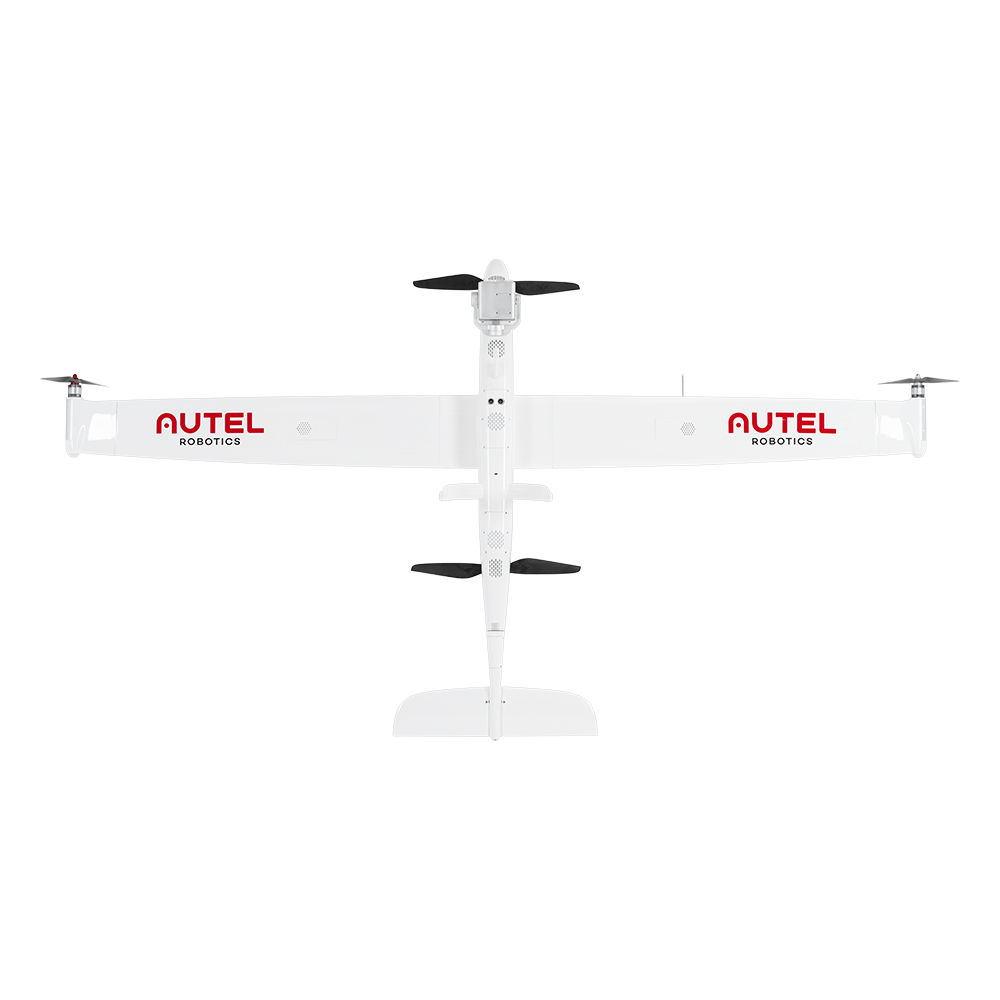

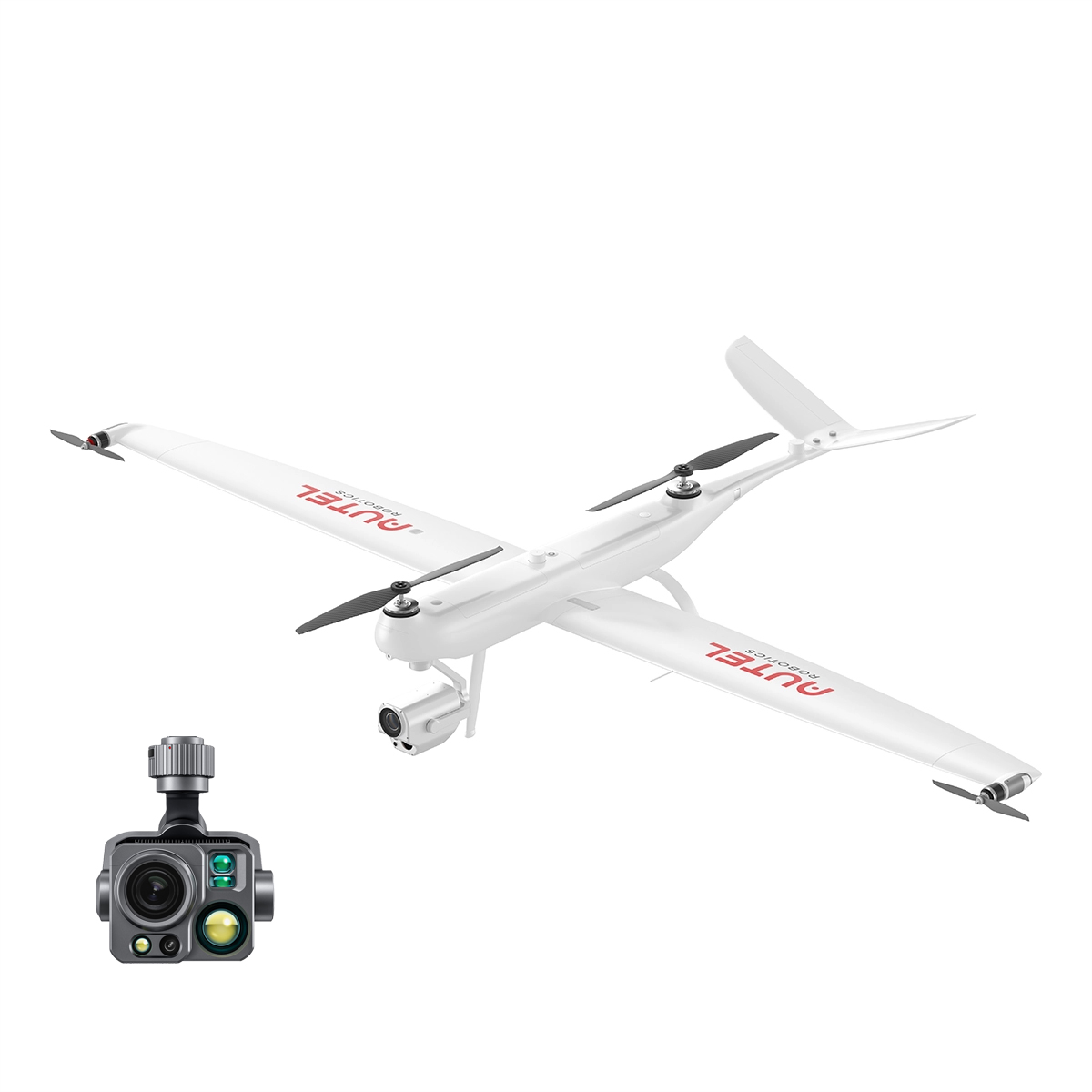

Autel Dragonfish Pro with T5: The Undisputed Heavy-Duty Grandmaster in VTOL Air Intelligence

The Autel Dragonfish Pro with T5 Payload is the most powerful and robust eVTOL (Electric Vertical Take-Off and Landing) platform within the Autel hierarchy. Specifically developed for heavy industrial missions, large-scale defense tasks, and boundless long-range inspections, this system eliminates all logistical barriers of traditional aviation. Thanks to the advanced tiltrotor design, the Dragonfish Pro takes off vertically from any unpaved terrain, then seamlessly transitions in the air to a highly efficient fixed-wing cruise flight. Coupled with the revolutionary T5 multi-sensor camera, this heavyweight platform delivers unmatched endurance and military-grade data acquisition.

Maximum Pro Stability & Four-in-One T5 Intel Hub

The Pro version is technically superior and designed to dominate gigantic areas in a single flight:

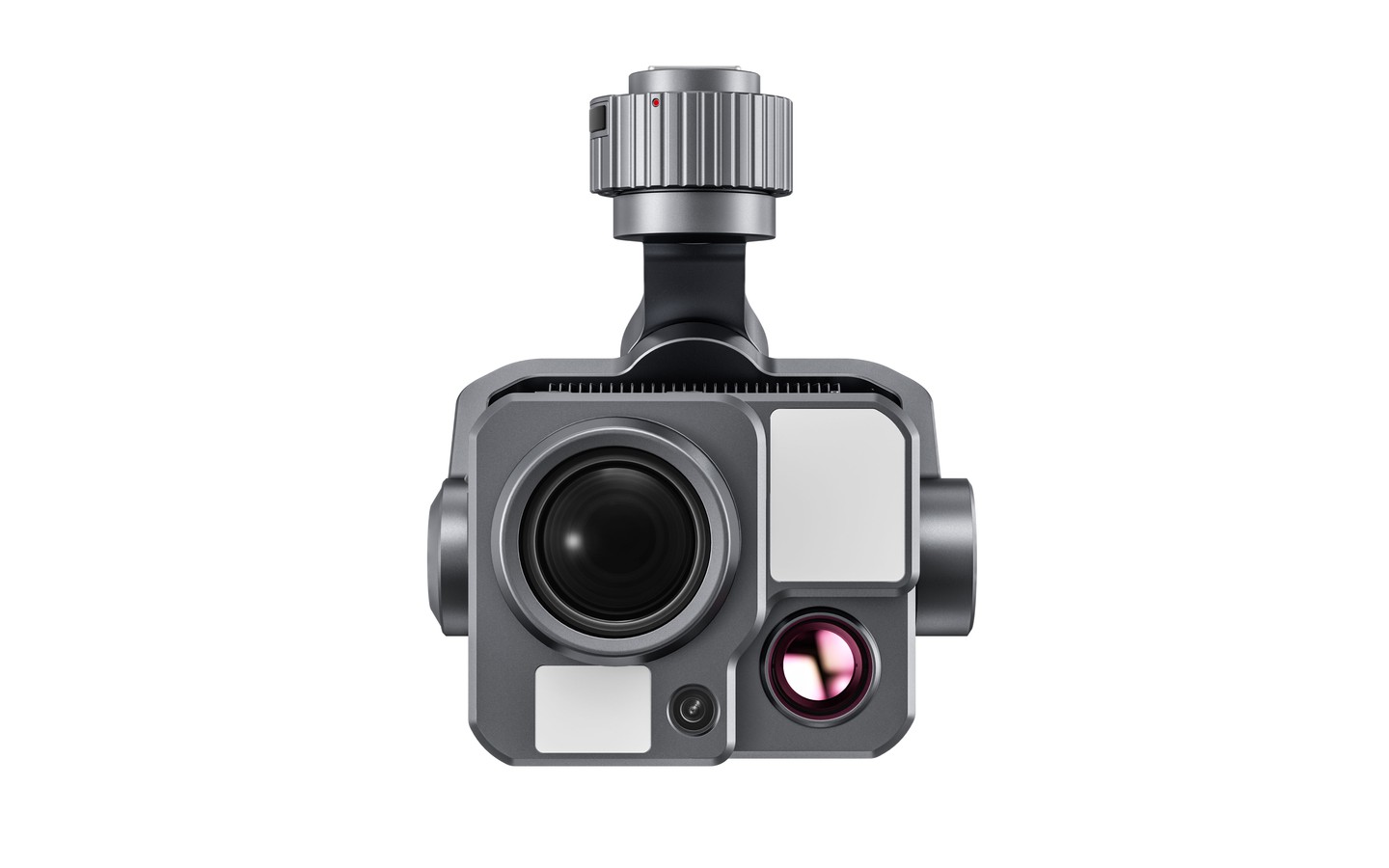

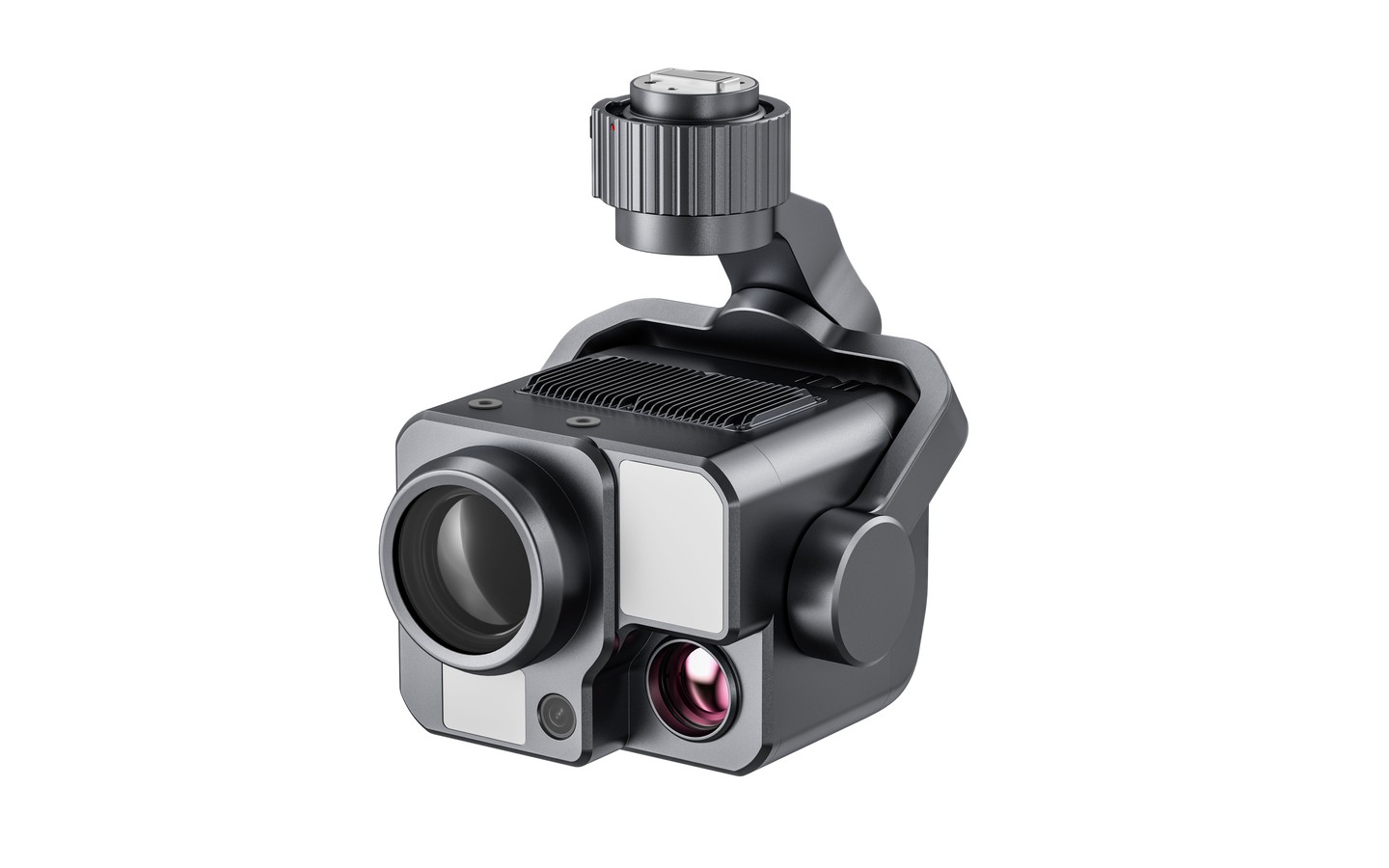

The T5 Multi-Sensor Matrix: This high-end gimbal combines four essential technologies in one streamlined housing: an ultra-powerful optical zoom camera for razor-sharp remote identification, a wide-angle camera for broad situational awareness, a radiometric thermal sensor for flawless night vision, and a laser rangefinder for direct target coordinate determination.
Unrivaled Flight Time & Coverage: The enlarged Pro airframe accommodates superior battery capacity. This allows the drone to stay in the air non-stop for hours to flawlessly scan hundreds of kilometers of vital infrastructure, border areas, or disaster zones.
Automated Swarm & Mission Control: Thanks to advanced autonomous flight planning, the system executes complex missions and mapping tasks fully independently. This minimizes the workload for the operator and maximizes the accuracy of the collected data.

Robust Build Quality & Industrial Fail-Safe Architecture

Hardware built to survive and perform under the most hostile operational conditions:

Extreme Frame with High Wind Resistance: The larger wingspan and carbon fiber-reinforced frame ensure unparalleled aerodynamic stability. The Dragonfish Pro effortlessly cuts through heavy wind gusts at high altitudes, where smaller drones must remain on the ground.
Military-Grade Safety Systems: The drone is equipped with intelligent redundancies, including advanced GNSS fail protection and backup emergency control. In the event of GPS signal failure, the drone continues navigating safely using its internal sensors, supported by the automatic Return-to-Home function.
Modular Quick-Swap System: Time is crucial in the field. The completely tool-free design ensures that the heavy battery modules and the T5 gimbal can be swapped within seconds, making the platform immediately ready for a subsequent mission.

Why the Dragonfish Pro with T5 Is Indispensable

For organizations, government agencies, and multinational industrial corporations that tolerate no margin for error, this configuration offers the ultimate total solution. It replaces the massive logistical footprint and high costs of manned helicopters or aircraft with a compact, agile, and extremely powerful eVTOL system. With the Autel Dragonfish Pro with T5 payload, you seize absolute visual and metric control over your operational sector, regardless of the time of day or weather conditions.

Autel Dragonfish Pro with T5: The Undisputed Sovereign of Heavy-Duty VTOL Intelligence

The Autel Dragonfish Pro with T5 Payload Camera stands as the definitive heavyweight flagship of the Dragonfish series, engineered specifically for high-stakes industrial missions, long-range reconnaissance, and critical aerial data operations. This premium enterprise eVTOL (Electric Vertical Take-Off and Landing) platform bridges the rapid deployment of a multirotor with the uncompromised aerodynamic efficiency of a massive fixed-wing aircraft. Eliminating the need for launch catapults or recovery fields, the Dragonfish Pro ascends vertically from any austere location before transitioning into high-velocity forward flight to monitor vast territories. Paired with the tactical T5 quad-sensor gimbal, it represents the ultimate asset for persistent surveillance and infrastructure inspection globally.

Maximum Pro Endurance & Quad-Sensor Analytical Power

As the most powerful model in the lineup, the Pro variant delivers unrivaled technical command over expansive geographic grids:

The T5 Quad-Sensor Intelligence Hub: This elite payload consolidates four high-tier capabilities into a single stabilized unit: a high-ratio optical zoom camera for pinpoint target verification at extreme distances, a wide-angle sensor for broad situational analysis, a radiometric thermal imaging camera for absolute nighttime tracking, and an integrated laser rangefinder for instantaneous coordinates extraction.
Elite Multi-Hour Airborne Endurance: The expanded Pro airframe is structurally optimized to support maximum battery capacity, delivering industry-leading flight duration. This allows the platform to survey massive utility corridors, sprawling disaster zones, or international borders in a single sortie without the operational gaps caused by frequent battery cycles.
AI-Driven Flight Autonomy: Advanced autonomous mission planning and smart tracking algorithms handle complex reconnaissance workflows independently. Backed by high-precision positioning, the system gathers high-fidelity geospatial and thermal data with minimal operator workload.

Industrial-Grade Durability & Advanced Redundancy Architecture

An unyielding ecosystem built to survive and perform reliably within the most hostile operational theaters:

Superior Wind Resistance & Durability: Constructed from rugged, lightweight composite materials, the larger Pro airframe provides exceptional flight stability. It effortlessly cuts through high-velocity winds and challenging atmospheric conditions that compromise lesser aircraft.
Hardened Safety Redundancies: The Dragonfish Pro is fortified with sophisticated fail-safe layers, including redundant control loops and advanced GNSS-loss protection. These industrial-grade mechanisms ensure the aircraft maintains navigational stability and returns safely even in signal-denied environments.
Quick-Swap Modular Field Adaptability: Operational velocity is native to the design. The modular airframe allows operators to hot-swap the T5 payload or change out the heavy-duty battery packs within seconds without requiring specialized tools, ensuring near-continuous deployment.

Why the Dragonfish Pro with T5 Is Essential

For organizations where missing data means mission failure, this configuration delivers an uncompromised strategic edge. It completely replaces the heavy logistical footprint and inherent risks of manned aviation with an agile, rapid-response eVTOL architecture that refuses to compromise on payload capacity or spatial range. Choosing the Autel Dragonfish Pro with the T5 payload means investing in maximum airborne endurance, multi-layered visual clarity, and unyielding field reliability—ensuring total territorial sovereignty anytime, anywhere.

Product	Autel Dragonfish Pro met T5 Payload
Product type	VTOL Drone
System type	eVTOL fixed-wing hybride
Wingspan	3,29 m
Dimensions	1650 × 3040 × 460 mm
Weight (without payload)	14,5 kg
Maximum starting weight	17 kg
Maximum load capacity	2,5 kg
Maximum flight time	Up to 158 minutes
Maximum speed	108 km/h
Maximum transmission distance	45 km
Protection class	IP43
GNSS	GPS / GLONASS / BeiDou / Galileo
Operating temperature	-20°C to 50°C
Maximum flight altitude	6000 m
Wind resistance	Total 15 m/s
Flight mode	Autonomous / Manual
Payload interface	Quick-change system
Start type	VTOL

For general product pages or simple product pages this contains what is in the box.

1 x Autel Dragonfish Pro Aircraft

1 x T5 Multi-Sensor Payload

1 x Ground Control Station

2 x Intelligent Flight Batteries

1 x Battery Charging Hub

1 x Transportkoffer

1 x Remote Controller

1 x Propeller Set

1 x Power Cable

1 x User Manual

Autel Ground Control Station

Autel Mission Planning Software

Autel Smart Antenna Transmission (ASAT)

Autel Dragonfish Repeater

Autel Dragonfish Nest

Autel RTK Module (if applied within configuration)

Aircraft

Are the blades removable?

The blades on both sides of the wing are quick-release blades, which can be easily detached and stored; the blades at the front and rear ends of the aircraft generally do not need to be disassembled. If they need to be replaced, you will require a set of tools to do so.

What is the ingress protection level of the Dragonfish? Can you fly on rainy days?

The Dragonfish Standard and Dragonfish Pro have an IP43 ingress protection rating, making them suitable for operation in light to moderate rain. The Dragonfish 25 has a higher IP45 rating, offering improved protection against water exposure.

What is the maximum flight time of the aircraft?

Dragonfish Standard: The max flight time is 107 minutes.

Dragonfish Pro: The max flight time is 179 minutes.

Image Transmission

What is the effective image transmission range of the Dragonfish?

When used with a base station, the maximum image transmission distance of the aircraft is 30km; when the ground station is used alone to connect the aircraft, the maximum image transmission distance is 15km.

Gimbal

What is the resolution of the Dragonfish gimbal camera?

Dual-lens camera: This consists of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and also has a 48-megapixel high-resolution wide-angle camera.
Triple sensor: Consist of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and has an integrated 48 MP high-resolution wide-angle camera; siultaneously it is equipped with 640*512 resolution infrared thermal imaging camera with a maximium the detection range of up to 2000 meters.

Can I change the gimbal mount?

Yes. The gimbal mount can be replaced.
Currently, the Dragonfish can be equipped with dual-lens and triple-lens cameras, and more mounts will be developed and introduced to the market in the future.

Battery

The two batteries have different power levels. Can you take off and fly?

If the power difference between the two batteries is less than 12%, you can take off; if the power difference is greater than 12%, the App will display “Battery power difference is too large” and you cannot take off.

Can the battery be carried on board?

The energy of the battery is 277.2Wh. According to airline requirements, the battery cannot be carried on board.

Can the battery be used in a low temperature environment?

The operating temperature of the battery is -20 °C to 40 °C. Use the battery in a low temperature environment, the battery life will be reduced, please arrange the flight time reasonably. For optimal performance, it is recommended to keep the battery temperature above 15 °C before flying.
If the battery is charged in an environment of -20 °C to 5 °C, the battery will start the self-heating function and enter the charging process after heating.

Can the battery be used in a low temperature environment?

How does one maintain the battery?

1. Ensure that the 2 batteries are charged/discharged at the same time to obtain the best power supply performance;

2. Do not charge immediately after flight; it is recommended to charge the battery after it drops to room temperature;

3. The ideal charging environment temperature of the battery is 15 °C~40 °C;

4. The ideal storage environment temperature of the battery is 22 °C~28 °C. When storing, ensure the area is free from water and moisture, and avoid direct sunlight;

5. If you do not use the battery for more than 10 days, please discharge the battery to 20%~30% and store it, and recharge and discharge it every 3 months or so to keep the battery active.

How long does it take to fully charge two batteries?

It takes about 120 minutes to fully charge each battery; about 240 minutes to fully charge both batteries.

Ground Station

Does the ground station have internal storage space?

Yes,it comes with 256G of internal memory.

What is the working environment temperature of the ground station?

– 20℃ to 40℃.

How long is the battery life of the ground station?

The battery life is 3 hours at maximum brightness and 4.5 hours at 50% brightness.

How long does it take to charge the ground station?

About 120 minutes.

What is the screen size, resolution, and maximum brightness of the ground station?

The ground station has a built-in 9.7-inch, 2048*1536 ultra-high-definition touch screen. The maximum brightness is 1000NIT.

What type of image output interface does the ground station provide?

HDMI output interface.

Can the Dragonfish ground station be used with other products?

No, it cannot.

Base Station

What is the working duration of the base station?

When fully charged, the working time is more than 7.5 hours.

How long does it take to charge the base station?

About 120 minutes.

What is the positioning accuracy of the base station?

Single Point

Level: 1.5 m (RMS)

Vertical: 3.0 m (RMS)

RTK

Level: 1 cm+1 ppm (RMS)

Vertical: 1.5 cm + 1 ppm (RMS)

What navigation systems does the base station support? What are the satellite receiving frequency points?

It simultaneously receives:

GPS：L1，L2，L5

Beidou：B1，B2，B3

GLONASS：F1，F2

Galileo：E1，E5A，E5B

Software

Which software applications is supported?

The Autel Voyager App is currently supported.

How does one upgrade the firmware?

Method 1:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. Copy the new firmware downloaded from the Autel official website to a USB flash drive. Insert the USB flash drive into the USB port of the ground station. A dialog box will pop up on the ground station screen to prompt the firmware upgrade. Follow the instructions to complete the firmware upgrade.

Method 2:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. When the ground station is connected to the network, if the firmware needs to be upgraded, the ground station will automatically detect the new firmware and prompt the user to download; after completing the download as prompted, click “Upgrade” and wait for the operation page to prompt “Firmware Upgrade Complete”.

Application

Which industries can it be applied to?

The Dragonfish can be used across a wide range of applications such as police law enforcement, forest fire prevention, electric power inspection, traffic law enforcement, coastal defense and smuggling, agricultural monitoring, and more.
