Dragonfish Standard with L20T

Dragonfish Standard

Dragonfish Standard with T5

Dragonfish Standard with T5L

VTOL design combines vertical take-off with efficient fixed-wing flights.
Up to 120 minutes flight time for prolonged professional missions.
L20T multisensor payload with zoom camera, thermal camera, and laser rangefinder.
RTK positioning with centimeter precision for accurate data capture.
Ideal for inspections, security, search and rescue operations, and infrastructure management.

About the product:

VTOL design combines vertical take-off with efficient fixed-wing flights.
Up to 120 minutes flight time for prolonged professional missions.
L20T multisensor payload with zoom camera, thermal camera, and laser rangefinder.
RTK positioning with centimeter precision for accurate data capture.
Ideal for inspections, security, search and rescue operations, and infrastructure management.

Pay with

Shipped by

Request a Quote

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

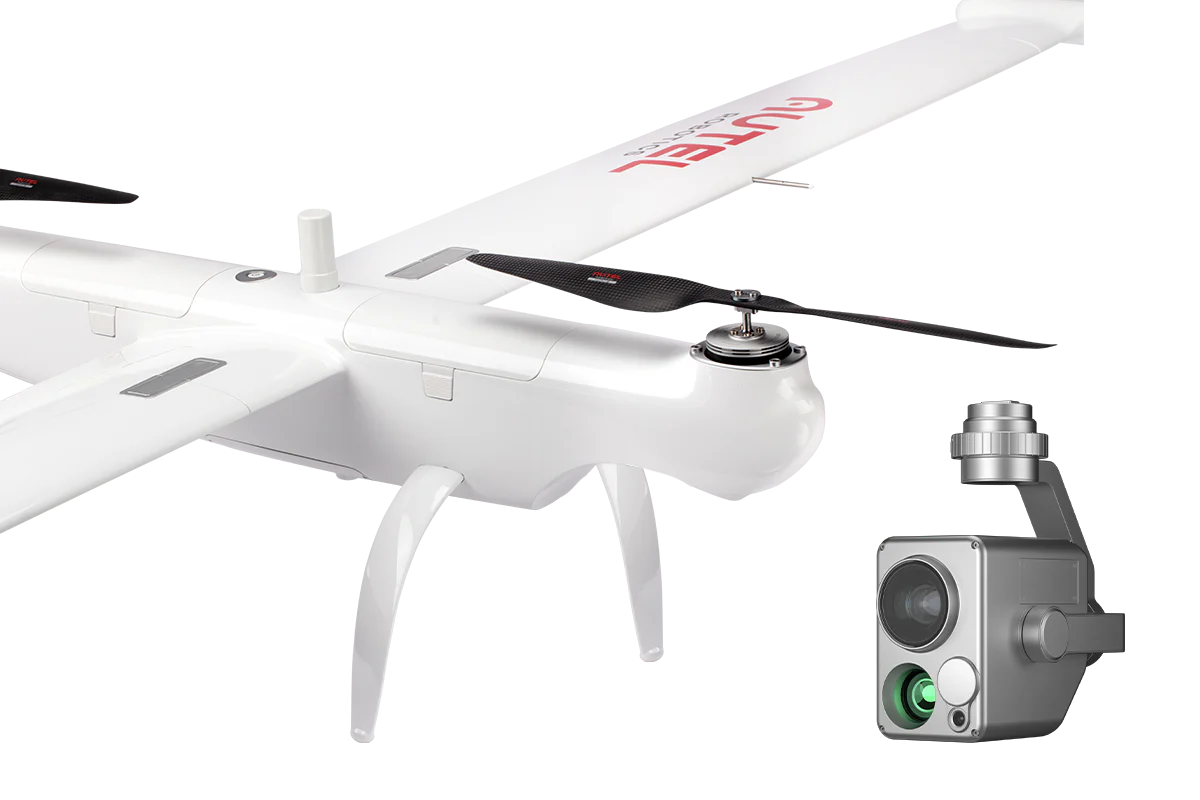

Autel Dragonfish Standard with L20T: The Undisputed Standard in Tactical VTOL Surveillance

The Autel Dragonfish Standard with L20T Payload represents the pinnacle of professional aerial observation. This advanced VTOL (Vertical Take-Off and Landing) platform solves the biggest dilemma in the drone industry: the need for the flexibility of a multirotor and the massive range of a fixed-wing aircraft. Without the need for a runway or catapult, the Dragonfish Standard takes off vertically anywhere, then smoothly transitions to highly efficient cruising flight. Coupled with the revolutionary L20T multisensor camera , this system is the ultimate tool for border surveillance, large-scale inspections, and complex search and rescue operations.

Quadruple Sensor Integration & Unprecedented Range

The combination of the Standard air frame and the L20T payload offers superior performance in the field:

The L20T Four-in-One Camera: This advanced gimbal integrates four essential sensors into a single housing: a 20x optical zoom camera to identify objects at extreme distances, a 12 MP wide-angle camera for situational awareness, a 640×512 thermal camera for night vision, and a laser rangefinder for precise coordinate determination.
120 Minutes of Continuous Flight Time: With an impressive endurance of 2 hours and a maximum transmission range of up to 30 kilometers , this drone effortlessly covers vast infrastructures or border zones without costly interruptions for battery changes.
Centimeter-Accurate RTK: The built-in RTK positioning guarantees that every image captured and every measurement taken is geographically precisely recorded. This makes the drone extremely suitable for accurate mapping missions and tactical monitoring.

Modular Speed & Weatherproof Reliability

Hardware designed for immediate deployment under heavy operational pressure:

Assembly Within Minutes: Time is of the essence during emergency response or security breaches. Thanks to the innovative, modular quick-assembly system, a single operator assembles the 2.3-meter wingspan drone within minutes, entirely without tools.
IP43 Certified Robustness: The aerodynamic chassis (maximum takeoff weight of 9 kg) is built to perform in varying weather conditions. It offers excellent resistance to wind and light precipitation, allowing missions to proceed reliably.
Quick-Swap Payload Architecture: Flexibility is key. Although the L20T is the ultimate all-rounder, the quick-swap system allows you to swap the camera for other specialized sensors in an instant, depending on the dynamics of the mission.

Why the Dragonfish Standard with L20T Is Indispensable

For organizations that rely on fast, error-free, and long-lasting aerial intelligence, this platform is the ultimate total solution. It eliminates the logistical complexity of traditional fixed-wing aircraft and, with the L20T gimbal, offers visual capabilities that accelerate decision-making day and night. Whether you are inspecting vital energy infrastructure, monitoring wildfires, or guarding large-scale sites, the Autel Dragonfish Standard delivers the data and reliability needed to maintain control when every second counts.

Autel Dragonfish Standard with L20T: The Definitive Standard in Tactical VTOL Surveillance

The Autel Dragonfish Standard with L20T Payload Camera represents the pinnacle of enterprise-grade aerial reconnaissance. This sophisticated VTOL (Vertical Take-Off and Landing) platform solves the ultimate drone logistics challenge: merging the operational agility of a multirotor with the superior aerodynamic range of a fixed-wing aircraft. Requiring no runways or complex launch equipment, the Dragonfish Standard ascends vertically from any confined location before smoothly transitioning into high-efficiency forward flight. Paired with the multi-sensor L20T gimbal, this system is the definitive force multiplier for border security, large-scale mapping, and mission-critical search and rescue operations.

Quad-Sensor Synergy & Elite Long-Range Analytics

The fusion of the Standard airframe and the L20T payload delivers unrivaled technical command:

The L20T Quad-Sensor Engine: This advanced payload consolidates four high-tier capabilities into a single stabilized unit: a 20x optical zoom camera for pinpoint identification at extreme distances, a 12 MP wide-angle camera for sweeping situational analysis, a 640×512 thermal imaging sensor for nocturnal tactical visibility, and an integrated laser rangefinder for precise target coordination.
120-Minute Mission Endurance: Offering an outstanding airborne duration of up to 2 hours and an expansive transmission range reaching up to 30 kilometers, this system dominates vast geographic territories without the operational gaps caused by frequent battery cycles.
Centimeter-Level RTK Precision: Fortified with integrated RTK positioning, the aircraft maps and monitors with absolute spatial fidelity. Every data point and thermal signature is anchored with professional-grade geographic accuracy.

Rapid-Deployment Modular Airframe & Rugged Design

Hardware optimized for immediate deployment in unpredictable enterprise environments:

Tool-Free Assembly within Minutes: When responding to active security breeches or emergency situations, every second matters. The modular airframe, featuring a robust 2.3-meter wingspan, allows a single operator to fully assemble and launch the aircraft rapidly without specialized tools.
IP43-Rated Weather-Sealed Protection: With a maximum takeoff weight of 9 kg, the aerodynamically optimized composite structure is engineered to withstand wind resistance and moisture ingress, ensuring stable, predictable performance across changing climates.
Quick-Swap Payload Integration: Versatility is native to the platform. While the L20T is the ultimate intelligence-gathering tool, the quick-swap mechanism enables operators to exchange sensors in moments, adapting seamlessly to shifting tactical requirements.

Why the Dragonfish Standard with L20T Is Essential

For organizations where continuous, authoritative aerial intelligence is non-negotiable, this platform provides an unmatched operational edge. It shatters the logistical barriers of legacy fixed-wing drones while deploying a visual arsenal that sharpens decision-making across day and night cycles. Whether conducting critical utility inspections, tracking environmental hazards, or maintaining persistent border surveillance, the Autel Dragonfish Standard delivers the raw range, multi-layered clarity, and unyielding reliability required to master the skies.

Product	Autel Dragonfish Standard
Producttype	VTOL Drone
Merk	Autel Robotics
Payload	DG-L20T Multisensor Camera
Spanwijdte	2,3 m
Afmetingen	2,3 × 1,29 × 0,46 m (L × B × H)
Gewicht	7,5 kg (incl. twee batterijen, excl. gimbal)
Maximaal Startgewicht	9 kg
Maximaal Payloadgewicht	1,5 kg
Maximale Vliegtijd	Tot 120 minuten
Transmissiebereik	Tot 30 km
Maximale Snelheid	30 m/s (108 km/u)
Serviceplafond	6000 m
IP-classificatie	IP43
GNSS	GPS + GLONASS + BeiDou + Galileo
RTK Nauwkeurigheid Horizontaal	1 cm + 1 ppm
RTK Nauwkeurigheid Verticaal	1,5 cm + 1 ppm
Bedrijfstemperatuur	-20°C tot 50°C

Product	Autel DG-L20T Payload
Zoomcamera Sensor	1/2.5″ CMOS
Zoomcamera Resolutie	8 MP
Optische Zoom	20x
Videoresolutie Zoomcamera	3840 × 2160 @ 30fps
Groothoekcamera Sensor	1/2″ CMOS
Groothoekcamera Resolutie	12 MP
Fotoresolutie Groothoekcamera	4000 × 3000
Thermische Resolutie	640 × 512
Temperatuurbereik	-20°C tot 150°C / 0°C tot 550°C
Temperatuur Nauwkeurigheid	±3°C of ±3%
Laserafstandsmeter Bereik	10 – 1200 m
Afstandsmeting Nauwkeurigheid	≤400 m: ±1 m / >400 m: ±0,4%
Stabilisatie	3-Assige Gimbal

Product	Ground Control Station
Schermgrootte	9,7 inch
Resolutie	2048 × 1536
Helderheid	1000 nits
Batterijduur	Tot 4,5 uur

1 x Autel Dragonfish Standard Aircraft

1 x L20T Multisensor Payload Camera

1 x Ground Control Station

1 x GNSS base station

4 x Intelligent Flight Batteries

1 x Battery Charger

1 x Power cable

1 x Wing set

1 x Tail set

1 x Antenneset

1 x Tripod for Base Station

1 x Tool and Repair Set

1 x TF Memory Card

1 x Documentation package

Autel Ground Control Station

Autel Mission Planning Software

Autel Smart Antenna Transmission (ASAT)

Autel Dragonfish Repeater

Autel Dragonfish Nest

Autel RTK module (if applied within configuration)

Aircraft

Are the blades removable?

The blades on both sides of the wing are quick-release blades, which can be easily detached and stored; the blades at the front and rear ends of the aircraft generally do not need to be disassembled. If they need to be replaced, you will require a set of tools to do so.

What is the ingress protection level of the Dragonfish? Can you fly on rainy days?

The Dragonfish Standard and Dragonfish Pro have an IP43 ingress protection rating, making them suitable for operation in light to moderate rain. The Dragonfish 25 has a higher IP45 rating, offering improved protection against water exposure.

What is the maximum flight time of the aircraft?

Dragonfish Standard: The max flight time is 107 minutes.

Dragonfish Pro: The max flight time is 179 minutes.

Image Transmission

What is the effective image transmission range of the Dragonfish?

When used with a base station, the maximum image transmission distance of the aircraft is 30km; when the ground station is used alone to connect the aircraft, the maximum image transmission distance is 15km.

Gimbal

What is the resolution of the Dragonfish gimbal camera?

Dual-lens camera: This consists of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and also has a 48-megapixel high-resolution wide-angle camera.
Triple sensor: Consist of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and has an integrated 48 MP high-resolution wide-angle camera; siultaneously it is equipped with 640*512 resolution infrared thermal imaging camera with a maximium the detection range of up to 2000 meters.

Can I change the gimbal mount?

Yes. The gimbal mount can be replaced.
Currently, the Dragonfish can be equipped with dual-lens and triple-lens cameras, and more mounts will be developed and introduced to the market in the future.

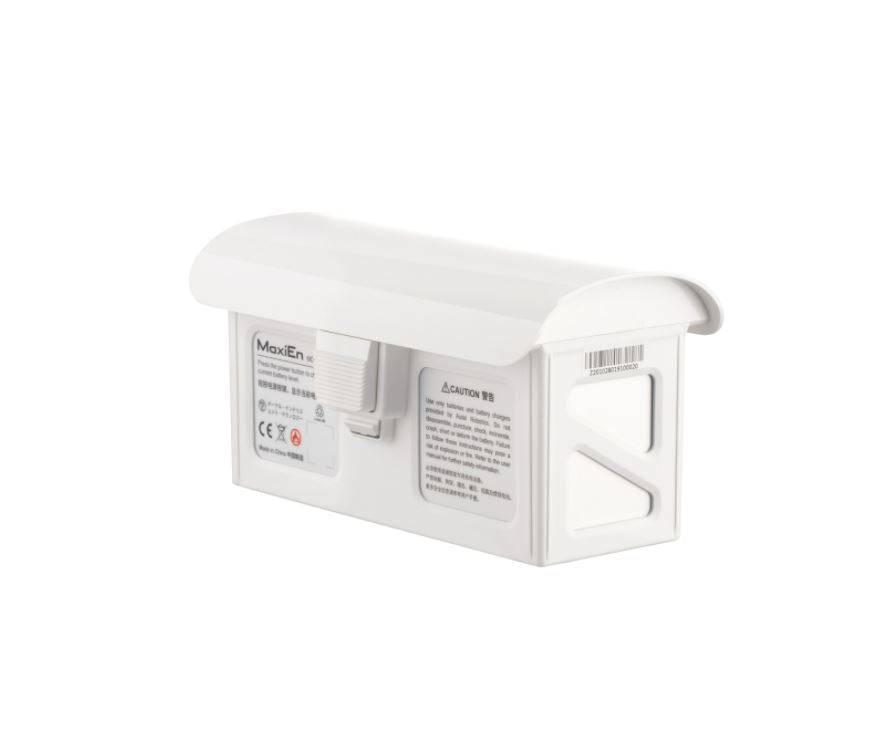

Battery

The two batteries have different power levels. Can you take off and fly?

If the power difference between the two batteries is less than 12%, you can take off; if the power difference is greater than 12%, the App will display “Battery power difference is too large” and you cannot take off.

Can the battery be carried on board?

The energy of the battery is 277.2Wh. According to airline requirements, the battery cannot be carried on board.

Can the battery be used in a low temperature environment?

The operating temperature of the battery is -20 °C to 40 °C. Use the battery in a low temperature environment, the battery life will be reduced, please arrange the flight time reasonably. For optimal performance, it is recommended to keep the battery temperature above 15 °C before flying.
If the battery is charged in an environment of -20 °C to 5 °C, the battery will start the self-heating function and enter the charging process after heating.

Can the battery be used in a low temperature environment?

How does one maintain the battery?

1. Ensure that the 2 batteries are charged/discharged at the same time to obtain the best power supply performance;

2. Do not charge immediately after flight; it is recommended to charge the battery after it drops to room temperature;

3. The ideal charging environment temperature of the battery is 15 °C~40 °C;

4. The ideal storage environment temperature of the battery is 22 °C~28 °C. When storing, ensure the area is free from water and moisture, and avoid direct sunlight;

5. If you do not use the battery for more than 10 days, please discharge the battery to 20%~30% and store it, and recharge and discharge it every 3 months or so to keep the battery active.

How long does it take to fully charge two batteries?

It takes about 120 minutes to fully charge each battery; about 240 minutes to fully charge both batteries.

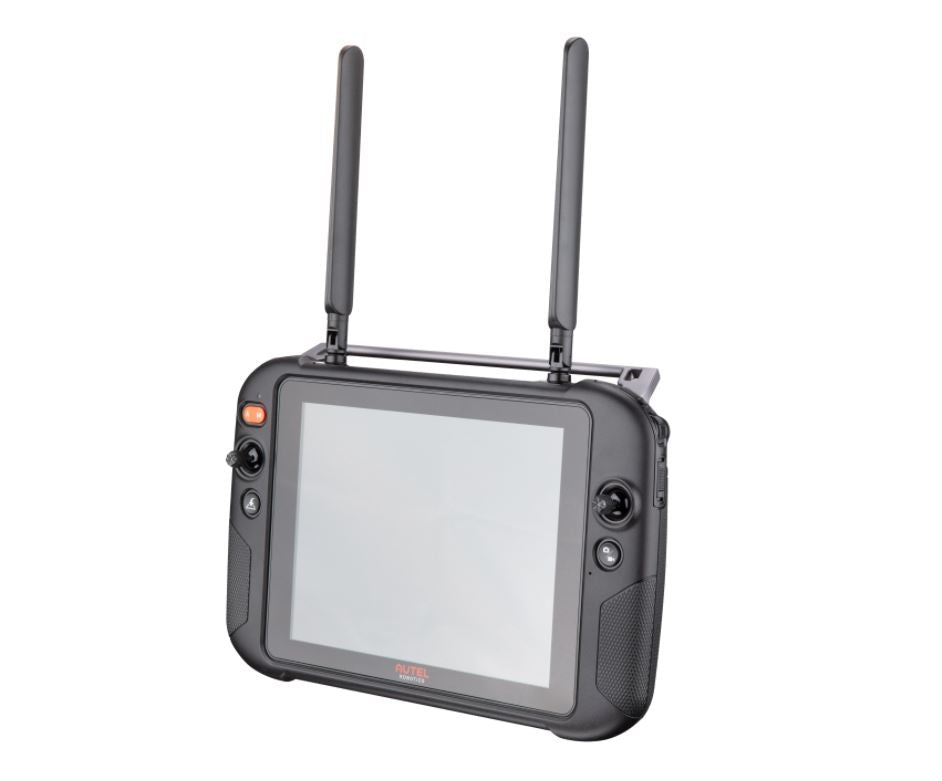

Ground Station

Does the ground station have internal storage space?

Yes,it comes with 256G of internal memory.

What is the working environment temperature of the ground station?

– 20℃ to 40℃.

How long is the battery life of the ground station?

The battery life is 3 hours at maximum brightness and 4.5 hours at 50% brightness.

How long does it take to charge the ground station?

About 120 minutes.

What is the screen size, resolution, and maximum brightness of the ground station?

The ground station has a built-in 9.7-inch, 2048*1536 ultra-high-definition touch screen. The maximum brightness is 1000NIT.

What type of image output interface does the ground station provide?

HDMI output interface.

Can the Dragonfish ground station be used with other products?

No, it cannot.

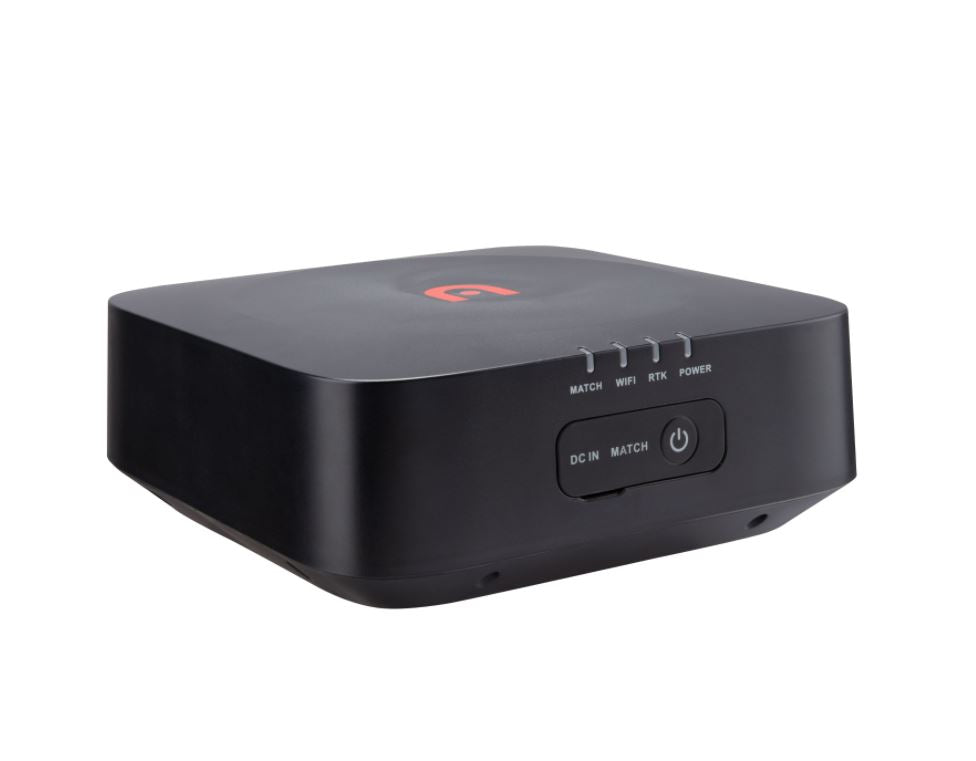

Base Station

What is the working duration of the base station?

When fully charged, the working time is more than 7.5 hours.

How long does it take to charge the base station?

About 120 minutes.

What is the positioning accuracy of the base station?

Single Point

Level: 1.5 m (RMS)

Vertical: 3.0 m (RMS)

RTK

Level: 1 cm+1 ppm (RMS)

Vertical: 1.5 cm + 1 ppm (RMS)

What navigation systems does the base station support? What are the satellite receiving frequency points?

It simultaneously receives:

GPS：L1，L2，L5

Beidou：B1，B2，B3

GLONASS：F1，F2

Galileo：E1，E5A，E5B

Software

Which software applications is supported?

The Autel Voyager App is currently supported.

How does one upgrade the firmware?

Method 1:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. Copy the new firmware downloaded from the Autel official website to a USB flash drive. Insert the USB flash drive into the USB port of the ground station. A dialog box will pop up on the ground station screen to prompt the firmware upgrade. Follow the instructions to complete the firmware upgrade.

Method 2:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. When the ground station is connected to the network, if the firmware needs to be upgraded, the ground station will automatically detect the new firmware and prompt the user to download; after completing the download as prompted, click “Upgrade” and wait for the operation page to prompt “Firmware Upgrade Complete”.

Application

Which industries can it be applied to?

The Dragonfish can be used across a wide range of applications such as police law enforcement, forest fire prevention, electric power inspection, traffic law enforcement, coastal defense and smuggling, agricultural monitoring, and more.
