| EVO Max 4N V2 Weight | 1700 g (ABX41-D smart battery, Fusion 4N V2 gimbal, and propellers included) |
| Maximum Take-Off Mass | 1999 g
1890 g (for C2 Certification in EU) |
| Fuselage Dimensions | 563×657×147 mm (unfolded, incl. propellers) |
| Diagonal Wheelbase | Diagonal: 467 mm |
| Propeller Size | 11 inch, 1158 |
| Propeller Pitch | 5.8 inch |
| Propeller Material | Nylon + Carbon Fiber |
| Propeller Weight | 10.3 g |
| Maximum Propeller Rotational Speed | 7500 RPM |
| Operating Temperature | -20℃ to +50℃ (without load)
-20℃ to +40℃ (full load) |
| Internal Storage | 128GB internal storage, with 64GB of available space*
* Remaining available space will vary with different firmware versions. |
| Supported microSD Cards | Supports Class 10, UHS-3 or higher microSD cards, up to 1TB |
| GNSS | GPS + Galileo + BDS + GLONASS |
| Hot Swap Battery | Supported*
* The hot swap battery function must be enabled in the flight application in advance. |
| Strobe | Integrated |
| Flight Performance | |
| Max Ascent Speed | Slow: 2.5 m/s
Smooth: 3 m/s
Standard: 6 m/s
Ludicrous: 8 m/s |
| Max Descent Speed | Slow: 2.5 m/s
Smooth: 3 m/s
Standard: 6 m/s
Ludicrous: 6 m/s |
| Max Flight Speed* | Slow: 3 m/s
Smooth: 10 m/s
Standard: 15 m/s (forward & backward), 10 m/s (sidewards)
Ludicrous: 23 m/s (forward), 18 m/s (backward), 20 m/s (sidewards)
* Windless Near Sea Level. |
| Max Service Ceiling Above Sea Level | 4500 meters (use ABX41-D smart battery) |
| Max Flight Altitude* | Chinese Mainland or EU Laws: No more than 120 meters
US Law: No more than 400 feet
* The altitude can be set from 20 to 800 meters in the flight application. To set altitude higher than required by law, authority approval is required. |
| Max Flight Time* | 42 minutes
* Test data from lab with windless environment in the speed of 8 m/s during horizonal flight and only for reference. |
| Max Flight Distance* | 25 km
* Test data from lab with windless environment in the speed of 14 m/s during horizonal flight and only for reference. |
| Max Hover Time* | 37 minutes
* Test data from lab with windless environment during hovering and only for reference. |
| Max Wind Speed Resistance | 12 m/s |
| Max Pitch Angle | Slow: 10°
Smooth: 30°
Standard: 30°
Ludicrous: 36° |
| Max Angular Velocity | Pitch axis: 300°/s
Yaw axis: 120°/s |
| Hovering Accuracy | Vertically
±0.1 m (when visual positioning works normally)
±0.5 m (when GNSS works normally)
Horizontally
±0.3 m (when visual positioning works normally)
±0.5 m (when high-precision positioning system works normally) |
| Wi-Fi | |
| Protocol | 802.11a/b/g/n/ac/ax |
| Operating Frequency | 2.4G: 2.400–2.476GHz*，2.400–2.4835GHz
5.2G: 5.15-5.25GHz**，5.17-5.25GHz***
5.8G: 5.725-5.829GHz*，5.725-5.850GHz
* Only applies to SRRC regions
** Only applies to FCC, CE (Germany excluded) and UKCA regions
*** Only applies to Germany
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations. |
| Equivalent Isotropic Radiated Power (EIRP) | 2.4G:
≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.2G:
≤30dBm (FCC); ≤23dBm (CE/UKCA)
5.8G:
≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA) |
| Video Transmission | |
| Operating Frequency | 900M: 902-928MHz*
2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz
5.2G: 5.15-5.25GHz***, 5.17-5.25GHz****
5.8G: 5.725-5.829GHz**, 5.725-5.850GHz
* Only applicable to FCC and ISED regions.
** Only applicable to SRRC regions.
*** Only applicable to FCC, CE (Germany excluded) and UKCA regions
**** Only applies to Germany
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations. |
| Equivalent Isotropic Radiated Power (EIRP) | 900M: ≤30dBm (FCC/ISED)
2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.2G: ≤30dBm (FCC); ≤23 dBm (CE/UKCA)
5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm(CE/UKCA) |
| Max Transmission Distance* | FCC: 15km
SRRC/CE: 8km
* Without Interference and Blocking. |
| Visual Obstacle Avoidance Sensing System | |
| Obstacle Sensing Range | Forward: 0.5 ~ 30 m
Backward: 0.5 ~ 25 m
Sidewards: 0.5 ~ 40 m
Upward: 0.5 ~ 40 m
Downward: 0.5 – 35 m |
| FOV | Forward & Backward: 60°(H), 80°(V)
Upward: 180° (sidewards), 120° (forward & backward)
Downward: 180° (sidewards), 120° (forward & backward) |
| Operating Environment | Forward, backward, sidewards, and upward:
The surface has rich textures, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment).
Downwards:
The surface has rich textures, and the surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment). |
| Millimeter-Wave Radar Sensing System | |
| Transmission Frequency | 24G: 24.0 – 24.25 GHz
60G: 60 – 64 GHz |
| Equivalent Isotropic Radiated Power (EIRP) | 60G: ≤20dBm (CE/UKCA/FCC)
24G: ≤20dBm (CE/UKCA/FCC), ≤13dBm (SRRC) |
| Sensing Range | 60G millimeter-wave radar:
Upward: 0.3 ~ 18 m @ high voltage transmission line
Downward: 0.15 ~ 40 m @ concrete floor
Forward & Backward: 0.15 ~ 18 m @ high voltage transmission line, with flight speed 10 m/s
Sidewards: 0.15 ~ 18 m @ high voltage transmission line, with flight speed 10 m/s
24G millimeter-wave radar:
Downward: 0.8 ~ 12 m @ concrete floor |
| FOV | Horizontal (6dB): ±30°/±15° (60G/24G)
Vertical (6dB): ±40°/±15° (60GHz/24G) |
| Operating Environment | 60G millimeter-wave radar sensing system:
Supports all-weather obstacle avoidance for glass, water, transmission line, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle’s ability to reflect electromagnetic waves and its surface size.
24G millimeter-wave radar sensing system:
Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters. |
| A.2 Gimbal | |

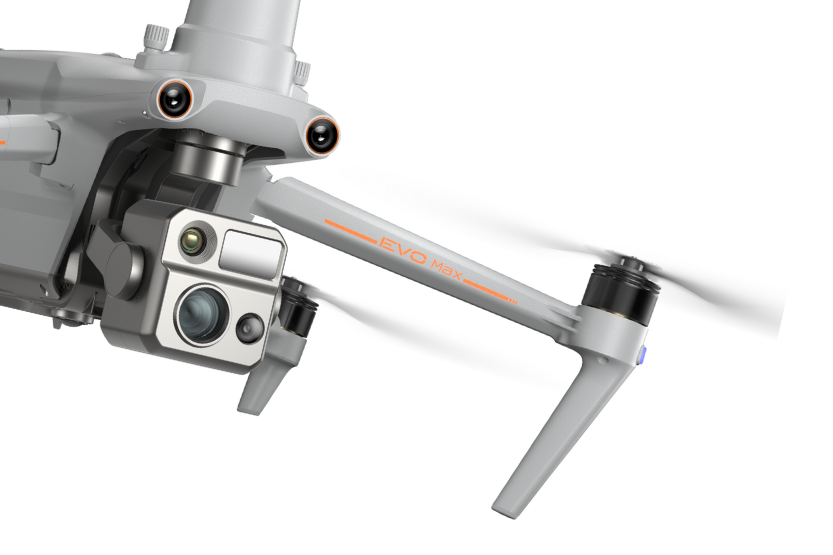

| A.2.1 Fusion 4N V2 | |
| Fusion 4N V2 | |
| Gimbal Weight | 258 g |
| Mechanical Range | Tile: -135° to 55°
Roll: -50° to 50°
Pan: -45° to 45° |
| Controllable Range | Tilt: -90° to 30° |
| Stabilization System | 3-axis mechanical gimbal (tilt, roll, pan) |
| Max Control Speed | Tilt: 100°/s |
| Angular Vibration Range | <0.005° |
| Night Vision Camera | |
| Image Sensor | 1.69″ CMOS. Effective pixels: 2.3M |
| Lens | DFOV: 52°±2°
Effective Focal Length: 11.2 mm
Aperture: f/1.4
Focus: 10 m ~ ∞ |
| Pixel Pitch | 12 um |
| ISO Range | Auto/Manual: ISO100 ~ ISO440000
Night Mode: ISO100 ~ ISO440000 (auto) |
| Shutter Speed | Shooting: 8s ~ 1/10000s
Recording: 1/30s ~ 1/10000s |
| Zoom | 1 ~ 8x digital zoom |
| Photo Size | JPG: 1920×1200 |
| Still Photography Mode | Single |
| Video Resolution | 1920×1200@30fps |
| Max Video Bitrate | 20Mbps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Encoding | H.264/H.265 |
| Supported File System | exFAT/FAT32 |
| Wide-angle camera | |
| Image Sensor | 1/0.98″ CMOS. Effective pixels: 50M |
| Lens | DFOV: 85.01°
Equivalent focal length: 23.52 mm
Aperture: f/1.85
Focus: 0.5 m ~ ∞ |
| ISO Range | Auto/Manual: ISO100 ~ ISO6400
Night Mode: ISO100 ~ ISO320000 (auto) |
| Shutter Speed | Shooting: 8s ~ 1/10000s
Recording: 1/30s ~ 1/10000s |
| Zoom | 1 ~ 8x digital zoom |
| Photo Size | JPG: 4096×3072, 8192×6144 |
| Still Photography Mode | Single |
| Video Resolution | 4000×3000@30fps |
| Max Video Bitrate | 60Mbps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Encoding | H.264/H.265 |
| Supported File System | exFAT/FAT32 |
| Infrared Thermal Camera | |
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | FOV: 61°
Focal length: 9.1 mm
Aperture: f/1.0
Focusing distance: 2.2 m ~ ∞ |
| Equivalent Digital Zoom Rate | 1-16x digital zoom |
| Noise Equivalent Temperature Difference | ≤50mK@25℃, F#1.0 |
| Pixel Pitch | 12 um |
| Spectral Band | 8 – 14 um |
| Temperature Measurement Method | Center Point Temperature Measurement/Spot Temperature Measurement/Area Temperature Measurement |
| Temperature Measurement Range | High Gain Mode: -20℃ to 150℃
Low Gain Mode: 0 to 550℃ |
| Temperature Measurement Accuracy | ±2℃ or reading ±2% (using the larger value) @ ambient temperature ranges from -10℃ to 50℃ |
| Temperature Measurement Distance | 1 – 100 m |
| Temperature Alert | In area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported |
| Palette | White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint |
| Photo Size | 640×512 |
| Still Photography Mode | Single |
| Photo Format* | JPG
* the images contain temperature information and are parsed by dedicated SDK and PC tools. |
| Video Resolution | 640×512@30fps |
| Max Video Bitrate | 10Mbps |
| Video Format | MP4 |
| Supported File System | exFAT/FAT32 |
| Laser Rangefinder | |
| Wavelength | 905 nm |
| Laser Safety | Class 1 |
| Measuring Accuracy | ± (1 m + D*×0.15%)
* Where D is the distance to a vertical reflecting plane. |
| Measurement Range | 5 – 1200 m |
| A.3 Remote Controller | |
| Autel Smart Controller V3 | |
| Body Material | PC+ABS |
| RC Dimensions | 269×189×87 mm (antennas folded, sticks and bracket included)
269×189×173 mm (antennas vertical to screen, sticks and bracket included)
269×302×87 mm (antennas unfolded, sticks and bracket included) |
| RC Weight | 1195 g (smart controller cover excluded)
1365 g (smart controller cover included) |
| Operating Temperature | -20℃ to 40℃ |
| Storage Temperature | +15℃ ~ +25℃ (within a year)
0℃ ~ +30℃ (within three months)
-20℃ ~ +45℃ (within a month) |
| Ingress Protection Rating | IP43*
* Long-term use may cause failure. |
| System Performance | |
| Operating System | Based on Android 11 |
| Pre-installed flight Application | Autel Enterprise |
| Application Installation | Supports the installation of third-party Android applications |
| Video Performance | Smooth playback of 4K@24fps H.264/H.265 videos |
| Internal Storage | 128GB*
* Does not support microSD card extension. |
| GNSS | GPS + Galileo + BDS + GLONASS |
| Port | |
| HDMI | Outputs up to 1080P@60fps video |
| USB-C | Charging: supports PD 60W fast charging and QC 18W fast charging.
Data: USB3.1 Gen2 |
| USB-A | Power: 5V/2A
Data: USB2.0 |
| Wi-Fi | |
| Protocol | 802.11a/b/g/n/ac |
| Operating Frequency | 2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz*, 5.725-5.850GHz
* Only applies to SRRC region
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations. |
| Equivalent Isotropic Radiated Power (EIRP) | 2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA) |
| Bluetooth | |
| Protocol | Bluetooth 5.0 |
| Operating Frequency | 2.400 – 2.4835 GHz
Note: In some regions, frequency range is specified. For details, please refer to local laws and regulations. |
| Effective Isotropic Radiated Power (EIRP) | ≤20dBm |
| Video Transmission | |
| Antenna | Dual antennas, 1T2R, detachable design |
| Operating Frequency | 900M: 902-928MHz*
2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz**, 5.725-5.850GHz
* Only applicable to FCC and ISED regions.
** Only applicable to SRRC region.
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations. |
| Effective Isotropic Radiated Power (EIRP) | 900M: ≤30dBm(FCC/ISED)
2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA) |
| Max Transmission Distance* | FCC: 15 km
SRRC/CE: 8 km
* Without Interference and Blocking. |
| Display | |
| Type | TFT LCD |
| Dimensions | 7.9 inches |
| Resolution | 2048×1536 |
| Max Brightness | 2000 nits |
| Refresh Rate | 60Hz |
| Touch Control | Supported |
| Battery | |
| Battery Replacement | Built-in, not supported |
| Battery Type | Li-Po 3S |
| Rated Capacity | 5800 mAh |
| Rated Energy | 67 Wh |
| Voltage | 11.55V |
| Charging Time | About 120 minutes*
* Charging time depends on the actual remaining power. |
| Battery Endurance | Max brightness: 2.5 hours
50% brightness: 4.0 hours |
| A.4 Smart Battery | |
| ABX41-D Smart Battery | |
| Battery Weight | 530 g |
| Battery Dimension | 158.4×74.3×50.7 mm |
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -20℃ to +35℃ |
| Ideal Storage Environment | +22℃ to +28℃, 65±20%RH, 60% battery level |
| Battery Type | Li-Po 4S |
| Rated Capacity | 9248mAh |
| Rated Energy | 136.5Wh |
| Voltage | DC 14.76V |
| Charging Voltage Limit | DC 17.0V |
| Rated Charging Power | 120W |
| Max Charging Power | 282W |
| Battery Charge Temperature | +5℃ to +45℃*
* When the battery temperature is below +5℃, the battery stops charging and activates self-heating. When the battery temperature is above +45℃, the battery stops charging. |
| Service life | 200 discharge cycles*
* If the number of discharge cycles exceeds 200, the battery should be replaced with a new one. |
| Battery Charger MDX120W | |
| Power Input | 100-240V~ 50/60Hz, 3.0A |
| Output Port | Battery charging port/USB-C |
| Battery Charging port | 17V⎓7.06A |
| USB-C | 5.0V⎓3.0A, 9.0V⎓3.0A, 12.0V⎓2.5A |
| Total Power Output | 120.0W Max |
| Total Power Output | 120.0W Max |
| Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions: forwards, backwards, and above and below. Its obstacle avoidance distance varies with the obstacle’s ability to reflect electromagnetic waves and its surface size. |
| 24Ghz Millimeter-wave Radar Sensing System |
| Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3cm is less than 6 meters. |
| |
| Radar and Visual Sensing Systems | |
| Sensing Range | Forward & Backward: 11.8-1968.5in (0.3-50m) |
| Sidewards: 19.7-1023.6in (0.5-26m) |
| Upward: 0.66-85.3ft (0.2-26m) |
| Downward: 0.49-262.5ft (0.15-80m) (60Ghz radar) |
| FOV | Forward/Backward Sensor: 80°(H), 120°(V) |
| Upward/Downward Sensor: 180° (sidewards), 120° (forwards & backwards) |
| Operating Environment | Forward, Backward, Upward, Downward: |
| Supports all-weather obstacle avoidance for glass, water, twigs, buildings and high voltage lines. At least one of the 2 conditions should be met: sufficient lighting or the obstacle has a strong reflection ability to electromagnetic waves. |
| Sidewards: |
| The surface has rich texture, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment) |
| |
| Aircraft Battery | |
| Capacity | 8070mAh |
| Voltage | 14.88V |
| Battery Type | LiPo 4S |
| Energy | 120Wh |
| Net Weight | 1.15 lbs (520g) |
| Charging Temperature | -4° F to 113° F (-20ºC to 45ºC)
(When the temperature is lower than 41° F (5° C), the self-heating function will be automatically activated. There should be at least around 10% of remaining power for heating.) |
| Hot Swappable | Supported |
| |
| Autel Smart Controller V3 | |
| Screen | Size: 7.9 inches |
| Resolution: 2048×1536 |
| Max Brightness: 2000nits |
| Battery | Capacity: 5800mAh |
| Voltage: 11.55V |
| Battery Type: Intelligent Lithium Ion Battery |
| Energy 67Wh |
| Charging time: 120 minutes |
| Operating Time | 2.5 hours (Max. brightness) |
| 4.5 hours (50% brightness) |
Max Transmission Distance
(without interference) | 12.4 miles/20km (FCC) |
| 4.9 miles/8km (CE) |
| IP Rating | IP43 |
| Storage | 128GB |
| GNSS | GPS+GLONASS+Galileo+Beidou |
| Transmitter Power (EIRP) | 2.4GHz |
| FCC: <28dBm |
| CE/SRRC/MIC: <20dBm |
| 5.8GHz |
| FCC/SRRC: <28dBm |
| CE: <14dBm |
| 902-928MHz |
| FCC: <28dBm |
| 5.65-5.755GHz |
| MIC: <31dBm |
| Operating Temperature | -4°F to 104°F (-20℃ to 40℃) |
| Wi-Fi Protocol | Wi-Fi Direct, Wi-Fi Display |
| 802.11a/b/g/n/ac |
| Supports 2×2 MIMO Wi-Fi |
| Wi-Fi Operating Frequency | 2.400-2.4835 GHz |
| 5.150-5.250GHz* (MIC only) |
| 5.725‒5.850GHz* (excluding MIC) |
| Wi-Fi Transmitting Power (EIRP) | 2.400-2.4835GHz |
| FCC:＜23dBm |
| CE/SRRC/MIC:＜20dBm |
| 5.150-5.250GHz |
| MIC:＜17dBm |
| 5.725‒5.850GHz |
| FCC/SRRC:＜22dBm |
| CE:＜14dBm |
English
Deutsch
Français
Nederlands
Polski
Español
Dansk
Čeština
Italiano
Română
Magyar
Eesti
Latviešu valoda
Lietuvių kalba
Slovenčina
Suomi
Norsk bokmål
Svenska
Português
