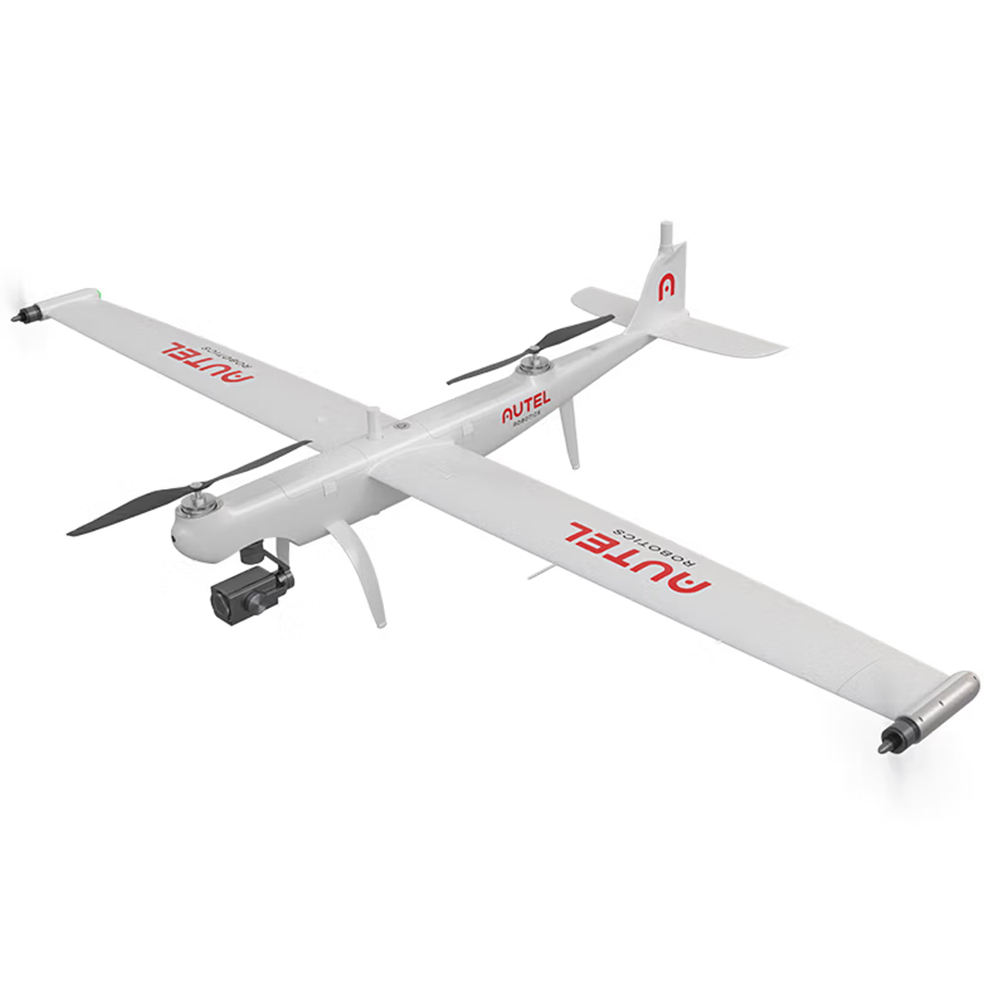

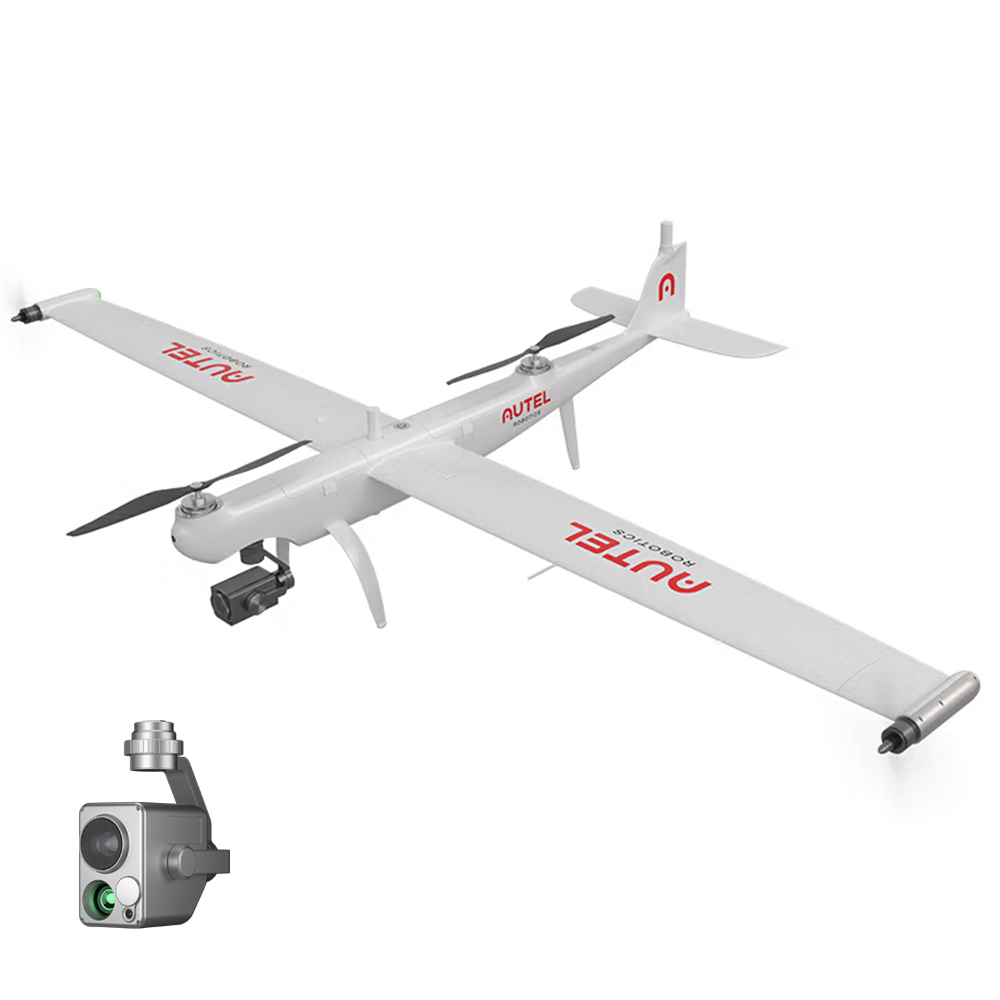

Dragonfish-25 with L20T

Dragonfish-25

Dragonfish-25 with T5

Dragonfish-25 with T5L

The eVTOL design combines vertical take-off and landing capabilities with the efficiency of a fixed-wing aircraft.
Up to 240 minutes flight time and mission range up to 220 km.
L20T payload with thermal camera, 35x optical zoom camera, and laser rangefinder.
Fully autonomous flight planning, intelligent target tracking, and RTK positioning.
Rapid deployment thanks to tool-free assembly and redundant safety systems.

About the product:

The eVTOL design combines vertical take-off and landing capabilities with the efficiency of a fixed-wing aircraft.
Up to 240 minutes flight time and mission range up to 220 km.
L20T payload with thermal camera, 35x optical zoom camera, and laser rangefinder.
Fully autonomous flight planning, intelligent target tracking, and RTK positioning.
Rapid deployment thanks to tool-free assembly and redundant safety systems.

Pay with

Shipped by

Request a Quote

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

Autel Dragonfish-25 with L20T: The Ultimate Ruler of Extreme Distances and VTOL Surveillance

The Autel Dragonfish-25 with L20T Payload establishes a new, unassailable standard in the world of unmanned aerial range. This advanced eVTOL (Electric Vertical Take-Off and Landing) UAV system is designed for high-stakes operations where every minute counts and failure is not an option. By merging the flexibility of vertical take-off and landing with the brute aerodynamic efficiency of a fixed-wing tilt-rotor platform, the Dragonfish-25 eliminates the need for complex catapults or runways. Coupled with the superior L20T multi-sensor camera , this system is the ultimate tactical asset for border surveillance, large-scale inspections of vital infrastructure, and critical search and rescue missions in the most remote areas.

Unprecedented Endurance & Advanced Multi-Sensor Imaging

The Dragonfish-25 breaks through the barriers of traditional drone operations with groundbreaking specifications:

An Astounding 240 Minutes Flight Time: With a breathtaking endurance of 4 hours non-stop in the air and a maximum operational range of up to 220 kilometers , this drone covers areas in a single flight that previously required manned helicopters.
The Tactical L20T Four-in-One Payload: Mounted on an extremely stable 3-axis gimbal, this system combines a wide-angle camera, a powerful 35x optical zoom camera , a radiometric thermal sensor for temperature measurements, and a laser rangefinder . This allows you to identify and track targets at extreme distances, both during the day and in the dead of night.
Military Performance: With a top speed of no less than 126 km/h and integrated RTK precision, the drone responds to incidents lightning-fast and captures geographic data with centimeter-accurate reliability.

Military-Grade Redundancy & Solo Operator Logistics

Hardware designed to guarantee maximum safety in unpredictable conditions:

Tool-Free Assembly in 10 Minutes: Despite the impressive wingspan and brute reach, the modular quick-release design enables a single operator to assemble the entire platform airworthy within ten minutes from a field location.
Fully Redundant Fail-Safe Architecture: Safety is deeply embedded in the DNA of the Dragonfish-25. The device features redundant systems for the battery, IMU, barometer, compass, and RTK positioning. Should a component fail, the backup systems immediately compensate, supported by the automatic Return-to-Home function.
High-Quality Composite Construction: The air frame is manufactured from ultra-lightweight yet extremely strong composite materials. This ensures superior wind resistance and a long operational lifespan in demanding industrial or maritime climates.

Why the Dragonfish-25 with L20T Is Indispensable

For government agencies, defense sectors, and multinational industrial corporations demanding maximum efficiency and infallible data, the Autel Dragonfish-25 with L20T is the ultimate total solution. It minimizes the ground logistics footprint, drastically reduces operational costs, and eliminates risk for human pilots. By letting the drone do the heavy lifting through fully autonomous flight missions and advanced AI target tracking, you seize absolute control over your operational sector. With the Dragonfish-25, you invest in total airspace sovereignty.

Autel Dragonfish-25 with L20T: The Undisputed Sovereign of Extreme-Endurance VTOL Reconnaissance

The Autel Dragonfish-25 with L20T Payload Camera establishes an untouchable new benchmark in the theater of long-range unmanned aviation. Engineered for high-stakes deployment where persistent coverage is non-negotiable, this premium eVTOL (Electric Vertical Take-Off and Landing) UAV platform masterfully bridges the rapid launch agility of a multirotor with the uncompromised aerodynamic efficiency of a fixed-wing tilt-rotor aircraft. Requiring zero launch catapults or expansive runways, the Dragonfish-25 ascends vertically from any austere terrain before transitioning into sustained forward flight. Paired with the tactical L20T multi-sensor gimbal, it represents the ultimate asset for border security, critical infrastructure tracking, and sweeping search and rescue operations.

Unprecedented 4-Hour Endurance & Quad-Sensor Intelligence

The Dragonfish-25 shatters the limitations of traditional industrial drones with industry-leading flight metrics:

An Astonishing 240-Minute Flight Window: Delivering a staggering 4 hours of non-stop airborne endurance and an expansive operational mission distance of up to 220 kilometers, this platform dominates vast geographic grids in a single sortie—tasks that previously required manned aircraft.
The High-Tier L20T Quad-Sensor Engine: Mounted on a high-fidelity 3-axis stabilized gimbal, this payload consolidates a wide-angle camera, a powerful 35x optical zoom camera for pinpoint target verification, a radiometric thermal imaging sensor with temperature diagnostics, and an integrated laser rangefinder for precise real-time coordination.
Tactical Velocity & RTK Fidelity: Slicing through the air at speeds up to 126 km/h, the aircraft combines rapid intervention capabilities with integrated RTK positioning to capture high-fidelity geospatial intelligence with centimeter-level accuracy.

Mission-Critical Redundancy & Single-Operator Logistics

An industrial-grade ecosystem engineered for immediate deployment and unyielding field survivability:

10-Minute Tool-Free Deployment: Despite its massive territorial range and heavy payload integration, the smart quick-release modular airframe allows a single field operator to fully assemble, calibrate, and launch the aircraft in approximately ten minutes.
Multi-Layered Fail-Safe Redundancies: Operational security is absolute. The Dragonfish-25 is fortified with duplicate internal hardware, featuring redundant systems for the batteries, IMU, barometer, compass, and RTK positioning sensors. If an anomaly occurs, backup modules seamlessly assume control alongside automated Return-to-Home protocols.
Advanced Carbon-Composite Engineering: Fabricated from elite, high-strength composite materials, the streamlined frame achieves a flawless balance of structural resilience and flight efficiency, maintaining steady performance across high winds and volatile environments.

Why the Dragonfish-25 with L20T Is Essential

For defense sectors, public safety agencies, and global enterprise operations where missing data means mission failure, this configuration delivers an uncompromised strategic edge. It completely eliminates the heavy logistical overhead and inherent dangers of manned aviation while providing an analytical visual toolset that sharpens command decisions across day and night cycles. By transferring the operational workload to fully autonomous flight planning and AI-driven target tracking, the Dragonfish-25 drives accuracy to flawless standards. Choosing this platform means securing total spatial sovereignty over your operational theater—anytime, anywhere.

Product	Autel Dragonfish-25 met L20T
Type	eVTOL Fixed-Wing UAV
Maximum starting weight	39 kg
Maximum payload	10 kg
Dimensions	3025,7 × 4566 × 823,6 mm
Flight time	Up to 240 minutes
Maximum distance	Up to 220 km
Maximum speed	126 km/h
Maximum flight altitude	5000 m
Wind resistance	15 m/s (fixed-wing modus)
Operating temperature	-20°C to 50°C
GNSS	GPS / Galileo / BeiDou / GLONASS
RTK	And
ADS-B receiver	And
Video connection	Up to 60 km (FCC, directional antenna)
Payload	L20T

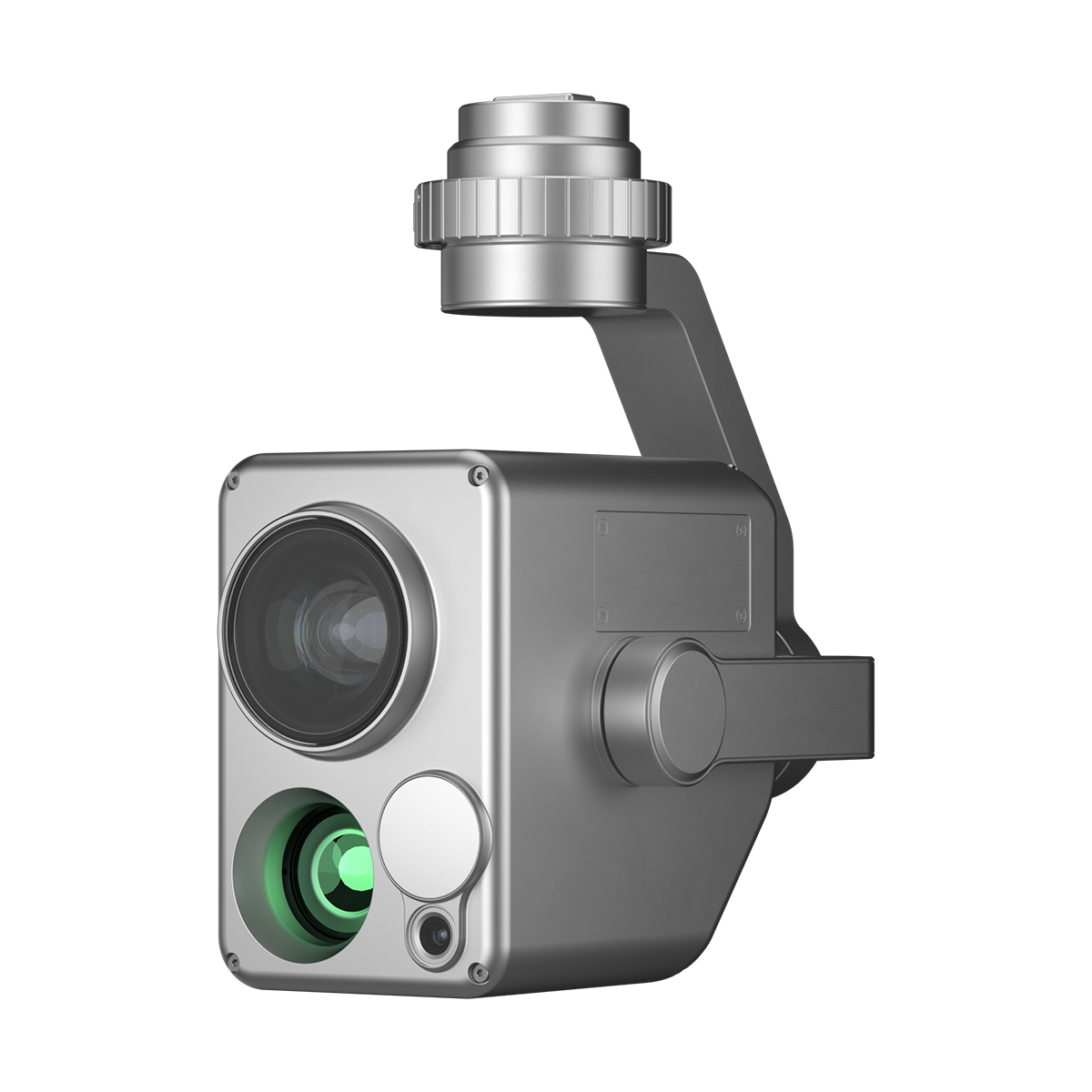

L20T Payload
Weight	1016 g
Dimensions	144,7 × 133,3 × 168,4 mm
Protection class	IP55
Post	128 GB microSD
Gimbal	3-axis stabilization
Zoom camera sensor	1/1.8″ CMOS
Zoom camera resolution	8 MP
Optical zoom	35x
Hybrid zoom	560x
Thermal resolution	640 × 512 px
Thermal focal length	25 mm
Temperature range	-20°C to 550°C
Laser rangefinder range	All 800 m
Video format	MP4 / MOV
Laserafstandsmeter bereik	Tot 800 m
Videoformaat	MP4 / MOV

1 x Autel Dragonfish-25 UAV

1 x L20T Gimbal Payload

1 x Afstandsbediening / Ground Control Station

1 x Batterijset

1 x Oplader

1 x Transportkoffer

1 x Propellerset

1 x Handleiding en documentatie

Autel Ground Control Station

Autel Mission Planning Software

Autel Smart Antenna Transmission (ASAT)

Autel Dragonfish Repeater

Autel Dragonfish Nest

Autel RTK module (if applied within configuration)

Aircraft

Are the blades removable?

The blades on both sides of the wing are quick-release blades, which can be easily detached and stored; the blades at the front and rear ends of the aircraft generally do not need to be disassembled. If they need to be replaced, you will require a set of tools to do so.

What is the ingress protection level of the Dragonfish? Can you fly on rainy days?

The Dragonfish Standard and Dragonfish Pro have an IP43 ingress protection rating, making them suitable for operation in light to moderate rain. The Dragonfish 25 has a higher IP45 rating, offering improved protection against water exposure.

What is the maximum flight time of the aircraft?

Dragonfish Standard: The max flight time is 107 minutes.

Dragonfish Pro: The max flight time is 179 minutes.

Image Transmission

What is the effective image transmission range of the Dragonfish?

When used with a base station, the maximum image transmission distance of the aircraft is 30km; when the ground station is used alone to connect the aircraft, the maximum image transmission distance is 15km.

Gimbal

What is the resolution of the Dragonfish gimbal camera?

Dual-lens camera: This consists of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and also has a 48-megapixel high-resolution wide-angle camera.
Triple sensor: Consist of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and has an integrated 48 MP high-resolution wide-angle camera; siultaneously it is equipped with 640*512 resolution infrared thermal imaging camera with a maximium the detection range of up to 2000 meters.

Can I change the gimbal mount?

Yes. The gimbal mount can be replaced.
Currently, the Dragonfish can be equipped with dual-lens and triple-lens cameras, and more mounts will be developed and introduced to the market in the future.

Battery

The two batteries have different power levels. Can you take off and fly?

If the power difference between the two batteries is less than 12%, you can take off; if the power difference is greater than 12%, the App will display “Battery power difference is too large” and you cannot take off.

Can the battery be carried on board?

The energy of the battery is 277.2Wh. According to airline requirements, the battery cannot be carried on board.

Can the battery be used in a low temperature environment?

The operating temperature of the battery is -20 °C to 40 °C. Use the battery in a low temperature environment, the battery life will be reduced, please arrange the flight time reasonably. For optimal performance, it is recommended to keep the battery temperature above 15 °C before flying.
If the battery is charged in an environment of -20 °C to 5 °C, the battery will start the self-heating function and enter the charging process after heating.

Can the battery be used in a low temperature environment?

How does one maintain the battery?

1. Ensure that the 2 batteries are charged/discharged at the same time to obtain the best power supply performance;

2. Do not charge immediately after flight; it is recommended to charge the battery after it drops to room temperature;

3. The ideal charging environment temperature of the battery is 15 °C~40 °C;

4. The ideal storage environment temperature of the battery is 22 °C~28 °C. When storing, ensure the area is free from water and moisture, and avoid direct sunlight;

5. If you do not use the battery for more than 10 days, please discharge the battery to 20%~30% and store it, and recharge and discharge it every 3 months or so to keep the battery active.

How long does it take to fully charge two batteries?

It takes about 120 minutes to fully charge each battery; about 240 minutes to fully charge both batteries.

Ground Station

Does the ground station have internal storage space?

Yes,it comes with 256G of internal memory.

What is the working environment temperature of the ground station?

– 20℃ to 40℃.

How long is the battery life of the ground station?

The battery life is 3 hours at maximum brightness and 4.5 hours at 50% brightness.

How long does it take to charge the ground station?

About 120 minutes.

What is the screen size, resolution, and maximum brightness of the ground station?

The ground station has a built-in 9.7-inch, 2048*1536 ultra-high-definition touch screen. The maximum brightness is 1000NIT.

What type of image output interface does the ground station provide?

HDMI output interface.

Can the Dragonfish ground station be used with other products?

No, it cannot.

Base Station

What is the working duration of the base station?

When fully charged, the working time is more than 7.5 hours.

How long does it take to charge the base station?

About 120 minutes.

What is the positioning accuracy of the base station?

Single Point

Level: 1.5 m (RMS)

Vertical: 3.0 m (RMS)

RTK

Level: 1 cm+1 ppm (RMS)

Vertical: 1.5 cm + 1 ppm (RMS)

What navigation systems does the base station support? What are the satellite receiving frequency points?

It simultaneously receives:

GPS：L1，L2，L5

Beidou：B1，B2，B3

GLONASS：F1，F2

Galileo：E1，E5A，E5B

Software

Which software applications is supported?

The Autel Voyager App is currently supported.

How does one upgrade the firmware?

Method 1:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. Copy the new firmware downloaded from the Autel official website to a USB flash drive. Insert the USB flash drive into the USB port of the ground station. A dialog box will pop up on the ground station screen to prompt the firmware upgrade. Follow the instructions to complete the firmware upgrade.

Method 2:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. When the ground station is connected to the network, if the firmware needs to be upgraded, the ground station will automatically detect the new firmware and prompt the user to download; after completing the download as prompted, click “Upgrade” and wait for the operation page to prompt “Firmware Upgrade Complete”.

Application

Which industries can it be applied to?

The Dragonfish can be used across a wide range of applications such as police law enforcement, forest fire prevention, electric power inspection, traffic law enforcement, coastal defense and smuggling, agricultural monitoring, and more.
