Dragonfish-25 with T5

Dragonfish-25

Dragonfish-25 with T5L

Dragonfish-25 with L20T

Up to 240 minutes flight time and mission range up to 220 km.
DG-T5 payload with zoom camera, wide-angle camera, and dual thermal sensors.
35x optical zoom and 560x hybrid zoom for long-distance observations.
Laser distance meter with a measuring range of 10 to 2000 meters.
IP45 protection, redundant systems, and rapid deployment within 5 minutes.

About the product:

Up to 240 minutes flight time and mission range up to 220 km.
DG-T5 payload with zoom camera, wide-angle camera, and dual thermal sensors.
35x optical zoom and 560x hybrid zoom for long-distance observations.
Laser distance meter with a measuring range of 10 to 2000 meters.
IP45 protection, redundant systems, and rapid deployment within 5 minutes.

Pay with

Shipped by

Request a Quote

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

Autel Dragonfish-25 with T5: The Undisputed Ruler over Extreme Distances and Dual-Thermal Surveillance

The Autel Dragonfish-25 with T5 Payload establishes a new, unassailable standard in the world of unmanned aerial range. This advanced eVTOL (Electric Vertical Take-Off and Landing) UAV system is designed for high-stakes operations where every minute counts and failure is not an option. By merging the flexibility of vertical take-off and landing with the brute aerodynamic efficiency of a fixed-wing tilt-rotor platform, the Dragonfish-25 eliminates the need for complex catapults or runways. Coupled with the revolutionary DG-T5 five-stage multisensor camera , this system is the ultimate tactical asset for border surveillance, public safety, and large-scale inspections of vital infrastructure in the most remote areas.

Fivefold Sensor Synergy & Unprecedented 4-Hour Mission Duration

The Dragonfish-25 breaks through the barriers of traditional drone operations with groundbreaking specifications:

The DG-T5 Multi-Sensor Matrix: This high-end gimbal integrates no fewer than five critical sensors into a single streamlined housing: a powerful 35x optical zoom camera to identify objects at extreme distances, a 48 MP wide-angle camera for broad situational awareness, an advanced dual-thermal architecture (wide-angle thermal camera and a tele-thermal camera) for unparalleled night vision, and a laser rangefinder with a range of up to 2,000 meters for precise coordinate determination.
An Astounding 240 Minutes Flight Time: With a breathtaking endurance of 4 hours non-stop in the air and a maximum operational range of up to 220 kilometers , this drone covers areas in a single flight that previously required manned helicopters.
Fully Autonomous Control: Thanks to advanced AI flight modes, the drone performs complex mapping tasks, surveillance interventions, and intelligent object tracking entirely autonomously. This minimizes the workload for the operator and guarantees error-free data acquisition with centimeter-accurate RTK precision.

IP45 Weather Resistance & Military-Grade Redundancy

Hardware built to survive and perform under the most hostile operational conditions:

IP45-Certified Robustness: With an enhanced IP45 rating, this platform is excellently protected against dust and heavy rainfall. This guarantees that critical missions can reliably continue in harsh, unpredictable maritime or industrial climates.
Fully Redundant Fail-Safe Architecture: Safety is deeply embedded in the DNA of the Dragonfish-25. The aircraft features multiple redundant systems, including dual batteries, dual RTK modules, redundant communication buses, and integrated ADS-B air traffic detection to monitor the surrounding airspace live.
Operational Within 5 Minutes: Despite the impressive wingspan and brute range, the modular quick-release design with a reinforced fiber core enables operators to assemble the entire platform airworthy from the transport case within five minutes.

Why the Dragonfish-25 with T5 Is Indispensable

For government agencies, defense sectors, and multinational industrial corporations demanding maximum efficiency and infallible data, the Autel Dragonfish-25 with T5 is the ultimate total solution. It minimizes the ground logistics footprint, drastically reduces operational costs, and eliminates risk for human pilots. By letting the drone do the heavy lifting through fully autonomous flight missions and advanced AI target tracking, you seize absolute control over your operational sector. With the Dragonfish-25, you invest in total airspace sovereignty.

Autel Dragonfish-25 with T5: The Undisputed Sovereign of Extreme-Endurance VTOL Reconnaissance

The Autel Dragonfish-25 with T5 Payload Camera establishes an untouchable new benchmark in the theater of long-range unmanned aviation. Engineered for high-stakes deployment where persistent coverage is non-negotiable, this premium eVTOL (Electric Vertical Take-Off and Landing) UAV platform masterfully bridges the rapid launch agility of a multirotor with the uncompromised aerodynamic efficiency of a fixed-wing tilt-rotor aircraft. Requiring zero launch catapults or expansive runways, the Dragonfish-25 ascends vertically from any austere terrain before transitioning into sustained forward flight. Paired with the tactical DG-T5 multi-sensor gimbal, it represents the ultimate asset for border security, critical infrastructure tracking, and sweeping search and rescue operations.

Five-Sensor Synergy & Unprecedented 4-Hour Endurance

The Dragonfish-25 shatters the limitations of traditional industrial drones with industry-leading flight metrics:

The High-Tier DG-T5 Intelligent Payload: This elite gimbal system consolidates five high-tier capabilities into a single stabilized unit: a powerful 35x optical zoom camera for pinpoint target verification, a 48MP wide-angle sensor for sweeping situational analysis, a state-of-the-art dual-thermal imaging array (featuring both a wide-angle thermal sensor and a tele-thermal sensor) for absolute nighttime tracking, and an integrated laser rangefinder with a 2,000-meter range for precise real-time coordination.
An Astonishing 240-Minute Flight Window: Delivering a staggering 4 hours of non-stop airborne endurance and an expansive operational mission distance of up to 220 kilometers, this platform dominates vast geographic grids in a single sortie—tasks that previously required manned aircraft.
AI-Driven Flight Autonomy: Advanced autonomous flight profiles, waypoint navigation, and smart tracking algorithms handle complex reconnaissance workflows independently. Backed by high-precision RTK positioning, the system gathers high-fidelity geospatial intelligence with minimal operator workload.

IP45 Weather Armor & Comprehensive Redundancy Architecture

An industrial-grade ecosystem engineered for immediate deployment and unyielding field survivability in the most hostile environments:

IP45-Rated Weather-Sealed Protection: Fortified with an upgraded IP45 weather resistance rating, the aircraft is thoroughly sealed against heavy rain and dust ingress, ensuring stable and predictable performance across volatile coastal or industrial climates.
Multi-Layered Safety Redundancies: Operational security is absolute. The Dragonfish-25 features duplicate internal hardware, utilizing redundant dual-battery layouts, twin RTK modules, redundant communication buses, and integrated ADS-B air traffic awareness sensors to safeguard the aircraft against surrounding airspace hazards.
5-Minute Rapid Field Deployment: Despite its massive territorial range and heavy payload integration, the high-strength composite airframe with a reinforced fiber core allows a field team to fully assemble, calibrate, and launch the aircraft from its transport case in approximately five minutes without requiring tools.

Why the Dragonfish-25 with T5 Is Essential

For defense sectors, public safety agencies, and global enterprise operations where missing data means mission failure, this configuration delivers an uncompromised strategic edge. It completely eliminates the heavy logistical overhead and inherent dangers of manned aviation while providing a five-layered visual arsenal that sharpens command decisions across day and night cycles. By transferring the operational workload to fully autonomous flight planning and AI-driven target tracking, the Dragonfish-25 drives accuracy to flawless standards. Choosing this platform means securing total spatial sovereignty over your operational theater—anytime, anywhere.

Product	Autel Dragonfish-25 met T5
Type	eVTOL Fixed-Wing UAV
Gewicht	29 kg
Maximaal startgewicht	39 kg
Maximaal laadvermogen	10 kg
Afmetingen	3025,7 × 4566 × 823,6 mm
Maximale vliegtijd	240 min
Maximale afstand	220 km
Maximale snelheid	35 m/s (126 km/u)
Maximale vlieghoogte	5000 m
Windbestendigheid	15 m/s
Beschermingsklasse	IP45
GNSS	GPS / Galileo / BeiDou / GLONASS
RTK	Ja
ADS-B ontvanger	Ja
Bedrijfstemperatuur	-20°C tot 50°C
Videoverbinding	Tot 60 km (directionele antenne)

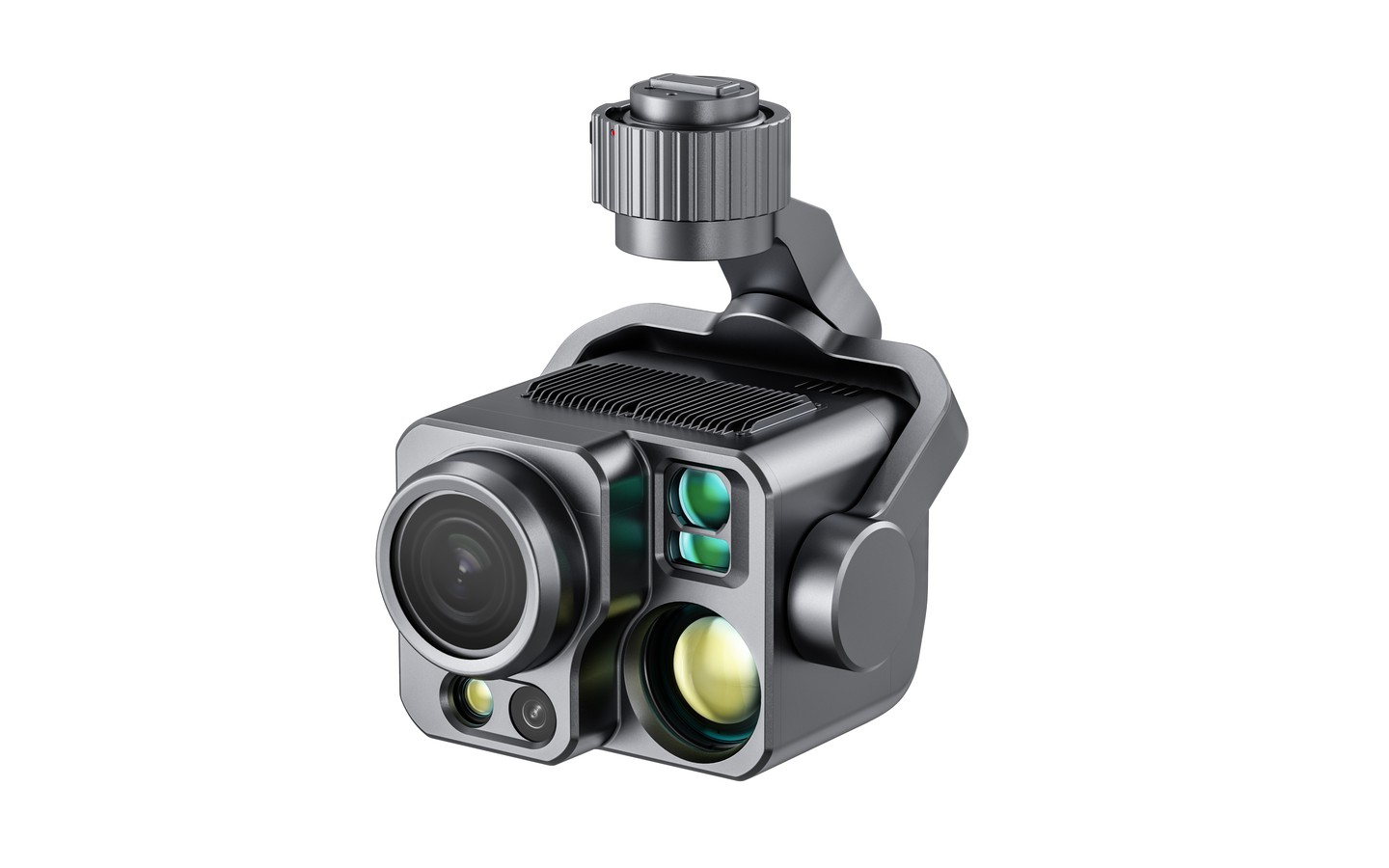

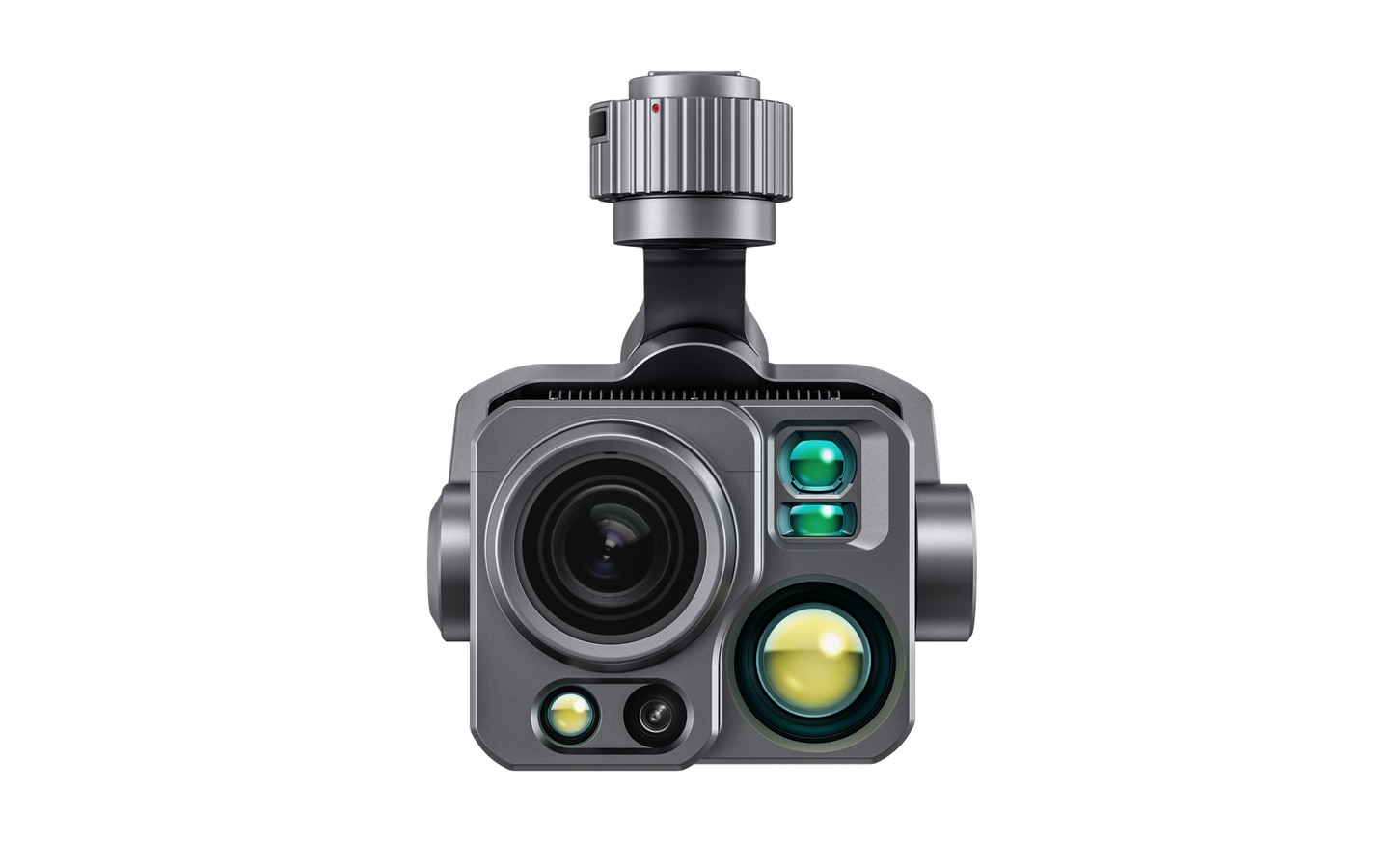

DG-T5 Payload

Product	DG-T5 Gimbal Payload
Gewicht	993 g
Afmetingen	144,7 × 133,3 × 168,4 mm
Beschermingsklasse	IP55
Opslag	128 GB microSD
Gimbal	3-assige stabilisatie
Zoomcamera sensor	1/1.8″ CMOS
Zoomcamera resolutie	8 MP
Optische zoom	35x
Hybride zoom	560x
Groothoekcamera	48 MP
Thermische resolutie	640 × 512 px
Thermische camera’s	Dubbel (Wide + Tele)
Laserafstandsmeter	10 – 2000 m
Temperatuurbereik	-20°C tot 550°C
Videoformaat	MP4 / MOV
Videocodec	H.264 / H.265

1 x Dragonfish-25 UAV Altar

1 x DG-T5 Gimbal Payload

1 x Ground Control Station

1 x Batterijset

1 x Battery Charger

1 x Propellerset

1 x Transportkoffer

1 x RTK Module

1 x Manual and documentation

Autel Ground Control Station

Autel Mission Planning Software

Autel Smart Antenna Transmission (ASAT)

Dragonfish Repeater Altar

Dragonfish Nest Altar

Autel RTK module (if applied within configuration)

Aircraft

Are the blades removable?

The blades on both sides of the wing are quick-release blades, which can be easily detached and stored; the blades at the front and rear ends of the aircraft generally do not need to be disassembled. If they need to be replaced, you will require a set of tools to do so.

What is the ingress protection level of the Dragonfish? Can you fly on rainy days?

The Dragonfish Standard and Dragonfish Pro have an IP43 ingress protection rating, making them suitable for operation in light to moderate rain. The Dragonfish 25 has a higher IP45 rating, offering improved protection against water exposure.

What is the maximum flight time of the aircraft?

Dragonfish Standard: The max flight time is 107 minutes.

Dragonfish Pro: The max flight time is 179 minutes.

Image Transmission

What is the effective image transmission range of the Dragonfish?

When used with a base station, the maximum image transmission distance of the aircraft is 30km; when the ground station is used alone to connect the aircraft, the maximum image transmission distance is 15km.

Gimbal

What is the resolution of the Dragonfish gimbal camera?

Dual-lens camera: This consists of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and also has a 48-megapixel high-resolution wide-angle camera.
Triple sensor: Consist of an integrated 4K ultra-high-definition optical zoom camera, which can achieve 20x optical zoom and 12x digital zoom; and has an integrated 48 MP high-resolution wide-angle camera; siultaneously it is equipped with 640*512 resolution infrared thermal imaging camera with a maximium the detection range of up to 2000 meters.

Can I change the gimbal mount?

Yes. The gimbal mount can be replaced.
Currently, the Dragonfish can be equipped with dual-lens and triple-lens cameras, and more mounts will be developed and introduced to the market in the future.

Battery

The two batteries have different power levels. Can you take off and fly?

If the power difference between the two batteries is less than 12%, you can take off; if the power difference is greater than 12%, the App will display “Battery power difference is too large” and you cannot take off.

Can the battery be carried on board?

The energy of the battery is 277.2Wh. According to airline requirements, the battery cannot be carried on board.

Can the battery be used in a low temperature environment?

The operating temperature of the battery is -20 °C to 40 °C. Use the battery in a low temperature environment, the battery life will be reduced, please arrange the flight time reasonably. For optimal performance, it is recommended to keep the battery temperature above 15 °C before flying.
If the battery is charged in an environment of -20 °C to 5 °C, the battery will start the self-heating function and enter the charging process after heating.

Can the battery be used in a low temperature environment?

How does one maintain the battery?

1. Ensure that the 2 batteries are charged/discharged at the same time to obtain the best power supply performance;

2. Do not charge immediately after flight; it is recommended to charge the battery after it drops to room temperature;

3. The ideal charging environment temperature of the battery is 15 °C~40 °C;

4. The ideal storage environment temperature of the battery is 22 °C~28 °C. When storing, ensure the area is free from water and moisture, and avoid direct sunlight;

5. If you do not use the battery for more than 10 days, please discharge the battery to 20%~30% and store it, and recharge and discharge it every 3 months or so to keep the battery active.

How long does it take to fully charge two batteries?

It takes about 120 minutes to fully charge each battery; about 240 minutes to fully charge both batteries.

Ground Station

Does the ground station have internal storage space?

Yes,it comes with 256G of internal memory.

What is the working environment temperature of the ground station?

– 20℃ to 40℃.

How long is the battery life of the ground station?

The battery life is 3 hours at maximum brightness and 4.5 hours at 50% brightness.

How long does it take to charge the ground station?

About 120 minutes.

What is the screen size, resolution, and maximum brightness of the ground station?

The ground station has a built-in 9.7-inch, 2048*1536 ultra-high-definition touch screen. The maximum brightness is 1000NIT.

What type of image output interface does the ground station provide?

HDMI output interface.

Can the Dragonfish ground station be used with other products?

No, it cannot.

Base Station

What is the working duration of the base station?

When fully charged, the working time is more than 7.5 hours.

How long does it take to charge the base station?

About 120 minutes.

What is the positioning accuracy of the base station?

Single Point

Level: 1.5 m (RMS)

Vertical: 3.0 m (RMS)

RTK

Level: 1 cm+1 ppm (RMS)

Vertical: 1.5 cm + 1 ppm (RMS)

What navigation systems does the base station support? What are the satellite receiving frequency points?

It simultaneously receives:

GPS：L1，L2，L5

Beidou：B1，B2，B3

GLONASS：F1，F2

Galileo：E1，E5A，E5B

Software

Which software applications is supported?

The Autel Voyager App is currently supported.

How does one upgrade the firmware?

Method 1:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. Copy the new firmware downloaded from the Autel official website to a USB flash drive. Insert the USB flash drive into the USB port of the ground station. A dialog box will pop up on the ground station screen to prompt the firmware upgrade. Follow the instructions to complete the firmware upgrade.

Method 2:

1. Before upgrading, please make sure that the aircraft, ground station, and base station are all turned on and that linking is successful.

2. When the ground station is connected to the network, if the firmware needs to be upgraded, the ground station will automatically detect the new firmware and prompt the user to download; after completing the download as prompted, click “Upgrade” and wait for the operation page to prompt “Firmware Upgrade Complete”.

Application

Which industries can it be applied to?

The Dragonfish can be used across a wide range of applications such as police law enforcement, forest fire prevention, electric power inspection, traffic law enforcement, coastal defense and smuggling, agricultural monitoring, and more.
