SHARE SLAM S20

€4.900,00€4.049,59

€4.049,59€3.346,77 excl VAT

excl VAT

Excl. VAT

Incl. VAT

Professional handheld 3D LiDAR scanner for mapping and surveying
Scans up to 200,000 points per second for detailed point clouds
Integrated RTK-GNSS positioning for centimeter-accurate measurements
Dual 1-inch CMOS cameras with mechanical shutter for accurate color reproduction
Suitable for BIM, CAD, infrastructure inspection, and 3D modeling

About the product:

Professional handheld 3D LiDAR scanner for mapping and surveying
Scans up to 200,000 points per second for detailed point clouds
Integrated RTK-GNSS positioning for centimeter-accurate measurements
Dual 1-inch CMOS cameras with mechanical shutter for accurate color reproduction
Suitable for BIM, CAD, infrastructure inspection, and 3D modeling

✔ Customer rating: 10 / 10
✔ Free shipping on orders over €99
✔ Standard EU warranty included
✔ Secure payments with SSL encryption
✔ Personal customer service
✔ Fast & reliable delivery
✔ Multiple payment methods available
✔ ISO 9001 certified

Pay with

Shipped by

Request a Quote

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

6+ years experience in drone industry
Ships within 24 hours from EU warehouse
2-Year limited warranty
No import duties
Best price guarantee
Free shipping above €100
High customer satisfaction

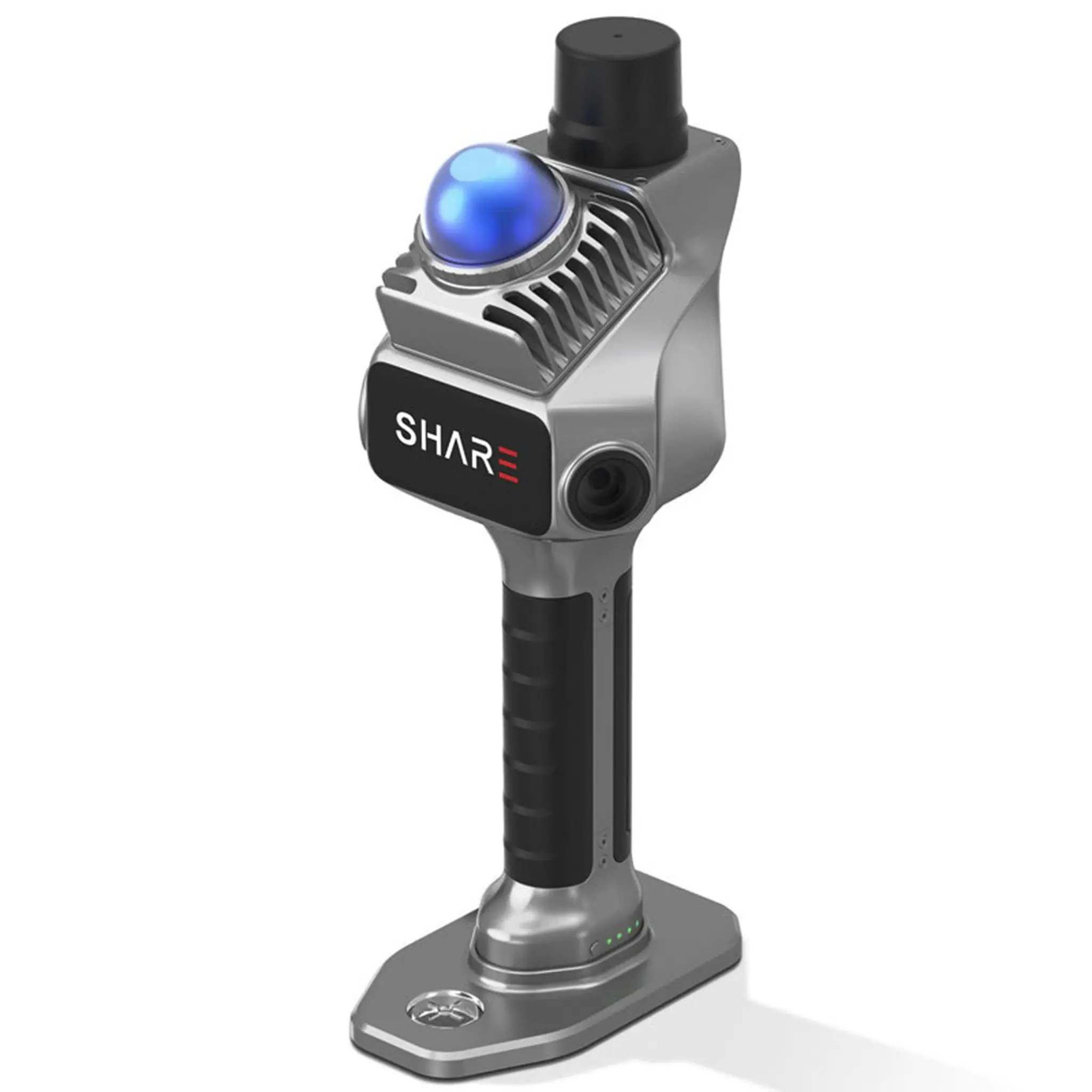

SHARE SLAM S20: The Ultimate Hybrid 3D Scanning Solution

The SHARE SLAM S20 represents the next generation in portable spatial digitization. As a high-end handheld 3D LiDAR scanner, this system breaks down the barriers between indoor and outdoor mapping by merging the power of LiDAR scanning with visual SLAM intelligence and RTK precision. Designed for professionals who do not settle for compromise, the S20 offers the ability to transform complex infrastructures, historical monuments, and vast construction sites into hyper-detailed digital copies in real-time. This is not just a scanner; it is a complete geospatial ecosystem in the palm of your hand.

Boundless Perception & Hybrid Tracking Intelligence

The SHARE SLAM S20 is built around an advanced LiDAR sensor that analyzes the environment at a speed of 200,000 points per second . However, what truly sets the S20 apart is the unique Fusion-SLAM algorithm . By combining LiDAR data with visual input from high-end cameras, the system maintains flawless tracking in environments where traditional scanners fail, such as smooth walls, narrow tunnels, or vast forests. Thanks to the integrated RTK-GNSS module, scans are immediately provided with an absolute georeferencing frame with centimeter accuracy, making manual dataset linking a thing of the past.

Exceptional Image Quality & Ergonomic Perfection

Visual reality is central to the S20. The system is equipped with two 1-inch CMOS cameras featuring mechanical shutters. This high-end optics ensures true-to-life point cloud colorization, making BIM models and digital twins not only technically accurate but also visually identical to reality. Weighing just 1.07 kg , the scanner is balanced down to the last detail for prolonged handheld use. The robust build quality guarantees reliable operation in extreme temperatures from -20°C to +50°C , while the powerful battery enables up to 150 minutes of continuous scanning—sufficient for the most demanding field missions.

Why the SHARE SLAM S20 Is Indispensable

For organizations striving for maximum efficiency in construction documentation, industrial modeling, or forensic investigation, the SHARE SLAM S20 is the ultimate catalyst. The system eliminates the need for complex static setups and drastically reduces data acquisition time. Whether you need to generate an as-built model of a complex factory building or map an archaeological site, the SHARE SLAM S20 delivers the speed of a handheld device with the precision of a surveying instrument. It is the smartest path to flawless digital transformation.

Product	SHARE SLAM S20
EAN	6955342340277
Dimensions	110.5 × 140 × 313.3 mm
Weight	1079 g
Storage capacity	256 GB (expandable)
Interface	TF card / Type-C
LiDAR class	Class 1 / 905 nm
Number of point clouds	200,000 points
Frequency point cloud	10 Hz (typical value)
Scanning range	0.1 – 40 m at 10% reflectivity
Scanning range	0.1 – 70 m at 80% reflectivity
LiDAR installation	Tilt 25° to the ground
RTK accuracy horizontal	0.8 cm + 1 ppm
RTK accuracy vertical	1.5 cm + 1 ppm
Sensor size	13.13 × 8.76 mm (1 inch)
Effective pixels	16 MP per lens
Shutter type	Mechanical shutter / Electronic shutter
Number of lenses	2
Battery capacity	45.36 Wh (3150 mAh)
Working hours	150 minutes
Point cloud thickness	≤ 1 cm
Relative accuracy	≤ 1 cm
Absolute accuracy	≤ 5 cm
